Amprobe 33XR-A Manual Ranging Multimeter
33XR-A Digital Multimeter w/ Temperature & Capacitance

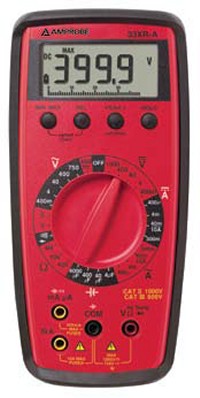

Amprobe 33XR-A Manual Ranging Multimeter


Manual ranging Digital Multimeter with Temperature and Capacitance for field service technicians.

Manual ranging digital multimeter with temperature and capacitance for field service technicians

  • Frequency to 40 MHz, Temperature to 1832 °F, Capacitance to 4000 μF

  • Input warning tone when test leads are in wrong jack

  • 1000 V/750 V DC/AC

  • 10 Amps AC/DC, fully safety fused

  • Resistance to 4 M W

  • Continuity beeper

  • Min/Max, Relative, Peak and Data Hold

  • Auto power off to save battery life

  • Separate door for easy battery and fuse access

  • Magne-Grip™ Holster with magnetic hanging strap

  • Display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
  • Display Update Rate:
    2/sec, nominal
  • Analog bar graph
  • Overrange indication
  • Operating Temperature:
    0 °C to 45 °C at < 70 % R.H.
  • Storage Temperature:
         -20 °C to 60 °C,
  • One-year warranty



Specifications:

Warranty:   1 Year
Battery Life:   300 hours (Alkaline)
Size:   7.7" x 3.5" x 2.3" (196 x 92 x 60 mm)
Weight:    (without holster, including battery): 0.9 lb (400 gr)
Safety:   Cat II 1000V, Cat III 600V



DC Voltage Ranges:     400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage Accuracy:     all ranges: ± (0.7 % rdg + 1 dgt)
DC Voltage Resolution:     100 μV
DC Voltage Input Impedance:     10 MΩ
AC Voltage (45 Hz to 500 Hz) Ranges:     400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 500 Hz) Accuracy:     4 V Range, 200 Hz to 500 Hz: ± (2.0 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) Accuracy:     All other ranges: ± (1.5 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) Resolution:     100 μV
AC Voltage (45 Hz to 500 Hz) Input Impedance:     10 MΩ
DC Current Ranges:     400 μA, 4 mA, 40 mA, 300 mA, 10 A
DC Current Accuracy:     400 μA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)
DC Current Accuracy:     10 A range: ± (2.0 % rdg + 3 dgts)
DC Current Resolution:     0.1 μA
DC Current Voltage Burden:     400 μA range: 1 mV/μA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA,
DC Current Voltage Burden:     300 mA range: 4 mV/1 mA, 10 A range: 100 mV/1 A
AC Current (45 Hz to 500 Hz) Ranges:     400 μA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 500 Hz) Accuracy:     400 μA to 300 mA ranges: ± (1.5 % rdg + 4 dgts)
AC Current (45 Hz to 500 Hz) Accuracy:     10 A range: ± (2.5 % rdg + 4 dgts)
AC Current (45 Hz to 500 Hz) Resolution:     0.1 μA
AC Current (45 Hz to 500 Hz) Voltage Burden:     See DC Current
Resistance Ranges:     400 Ω 40 kΩ 4 MΩ
Resistance Accuracy:     400 Ωand 40 kΩ ranges: ± (1.0 % rdg + 4 dgts)
Resistance Accuracy:     4 MΩ range: ± (1.2 % rdg + 4 dgts)
Resistance Resolution:     100 mΩ
