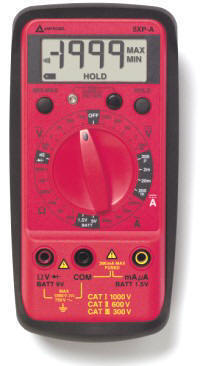

Amprobe 5XP-A Compact Digital Multimeter
(click Photo for Larger Image)


Amprobe 5XP-A Compact Digital Multimeter


The right choice for residential, commercial and general troubleshooting applications.

The 5XP-A is the right choice for residential, commercial and general troubleshooting applications.The Amprobe 5XP-A digital multimeter provides superior features and accuracy in a smaller form factor.

The 5XP-A has unique features such as VolTect™ non-contact voltage (NVC) detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the right choice for residential, commercial and general troubleshooting applications.

  • Display 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
  • Polarity Automatic, positive implied, negative polarity indication
  • Overrange (OL) or (-OL) is displayed
  • Zero: Automatic Exclusive Magne-Grip holster frees both hands for work.
  • Low Battery Indication
  • Measurement Rate 2.5 times per second, nominal
  • Operating Environment 0 °C to 50 °C at <70 % R.H.
  • Storage Temperature -20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
  • Stated accuracy at 23 °C ± 5 °C, <75 % relative humidity
  • Temperature Coefficient 0.1 x (specified accuracy) per °C (0 °C to 18 °C, 28 °C to 50 °C)
  • Altitude 2000 m (6561.7 ft)
  • VolTect™ non-contact voltage (NVC) detection

Features:
Warranty:      One-year
Battery Life:      200 hours typical with carbon-zinc
Size:      155 mm x 72 mm x 32 mm (6.1 in x 2.8 in x 1.3 in)
Weight:      Approx. 210 g (7.4 oz) including battery
Safety:      Cat I 1000V, Cat II 600V, Cat III 300V

Specifications:

DC Volts Ranges:     200 mV, 2 V, 20 V, 200 V, 1000 V Accuracy: ± (1.0 % rdg + 1 dgt)
AC Volts (45 Hz to 500 Hz) Ranges:     200 mV, 2 V, 20 V, 200 V, 750 V Accuracy: ± (1.5 % rdg + 5 dgts)
Voltage Resolution:     100 μV
Voltage Input Impedance:     10 MΩ
Overload Protection:     200 mV: 1000 V dc or 750 V ac rms (3 minutes) All other ranges: 1000 V dc or 750 V ac rms
DC Current Ranges:     200 μA, 2 mA, 20 mA, 200 mA Accuracy: ± (1.5 % rdg + 1 dgt)
AC Current (45 Hz to 500 Hz) Ranges:     200 μA, 2 mA, 20 mA, 200 mA Accuracy: ± (2.0 % rdg + 5 dgts)
Current Resolution:     0.1 μA
Input Protection:     315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input
Burden Voltage:     300 mV max. (1 V max. on 200 mA range)
Resistance:     200 Ω , 2 kΩ , 20 kΩ , 200 kΩ ± (1.0 % rdg + 4 dgts)
Resistance:     2 MΩ ± (1.5 % rdg + 4 dgts)
Resistance:     20 MΩ ± (2.0 % rdg + 5 dgts)
Resistance Resolution:     100 mΩ
Open Circuit Voltage:     0.3 V dc typical, (3.0 V dc on 200 Ω range)
Overload Protection:     1000 V dc or 750 V ac rms
Continuity: Audible Indication:     75 Ω ± 25 Ω, Response Time: 100 ms
Diode Test Current:     1.0 mA (approximate) ±(1.5 % rdg + 3 dgts)
Diode Test Resolution:     1 mV
Open Circuit Voltage:     3.0 V dc typical
Non-Contact Voltage Indicator:     Sense voltage 70 V to 600 V ac; beeper chirps and bright red LED on, works on all ranges
Battery Test :     1.5 V, 9 V Accuracy: ± (3.5 % rdg + 2 dgts

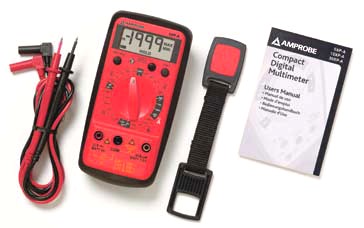

5XP-A Included Accessories


Included Accessories

Pair of test leads (TL245A), fuse 315 mA/1000 V P/N FP300, 9 V battery (installed), Magne-Grip™ Holster with magnetic hanging strap (H2-XR) and users manual.,
