Amprobe AC40B Mini Clamp-on DMM
400A Mini Digital Clamp-on

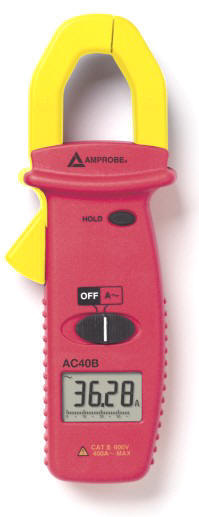

Amprobe AC40B Mini Clamp-on DMM

400A Mini Digital Clamp-on Multimeters

These unique mini-clamp meters meet your needs when measuring up to 400 amps. Their compact size make them a handy daily tool to fit into the slightest of tool kits.

With an easy to read digital display, Data Hold capability, Analog Bargraph and 10 mA resolution when using the 40A range.
  • Display: 33⁄4 digit LCD (max reading 3999)
  • Overrange Indication: “OL” indicated
  • Low Battery Indication: Battery symbol appears
  • Power Supply: Two (2) 1.5 V AAA batteries (UM-4)
  • Maximum Jaw Opening: 25.4 mm (1 inch)
  • Operating Temperature: 0 °C to + 40 °C, < 80 % R.H. noncondensing
  • Storage Temperature: - 10 °C to + 60 °C, < 70 % R.H. non-condensing batteries removed

Specifications:
Warranty:   One Year
Battery Life:   Alkaline 300 hours, approx
Size:   2.5 x 7.5 x 1.4 in.
Safety:   CAT III 600 V
DC Voltage Ranges:     400 V, 600 V
DC Voltage Accuracy:     ± (1.2 % rdg + 5 dgts)
DC Voltage Resolution:     0.1 V in 400 V range
DC Voltage Input Impedance:     1 MΩ
AC Voltage (50-400 Hz) Ranges:     400 V, 600 V
AC Voltage (50-400 Hz) Accuracy:     ± (1.5 % rdg + 10 dgts)
AC Voltage (50-400 Hz) Resolution:     0.1 V in 400 V range
AC Voltage (50-400 Hz) Input Impedance:     1 MΩ
AC Current Ranges:     40 A, 400 A
AC Current Accuracy:     ± (2 % rdg + 10 dgts)
AC Current Resolution:     0.01 A in 40 A range
Resistance Range:     400 Ω
Resistance Accuracy:     ± (1 % rdg + 5 dgts)
Resistance Resolution:     0.1 ½ in 400 Ω
Continuity (audible); Continuous Tone:     Display at R < 40 ½
Continuity (audible) : Max Open Voltage:     - 1.2 V
Overload Protection:     660A for AC current only
Overload Protection:     660V rms for all other measurements



Optional Accessories:
Orders over $200.00 ship FREE to 48 states

ELS2A
AC Line Splitter
 LE-AM-ELS2A
 $13.95
Amprobe ELS2A AC Line SplitterMeasures current without splitting AC line cords, Two measurement loops for increased sensitivity, X1 and X10
  • Measures current without splitting AC line cords
  • Two measurement loops for increased sensitivity, X1 and X10
  • Built-in voltage measurement points to check for voltage sags and surges
  • Rated for 120V, 15Amps
