1000A
Data-logging Digital Clamp-on Multimeter
(2 models available)
|
ACD-16
PRO Clamp-on
Multimeter
AM-ACD-16PRO
$139.95 |
|
|
ACD-16 TRMS-PRO
True RMS
Clamp-on
Multimeter
AM-ACD-16TRMS-PRO
$149.95 |
|
Optional Accessories:
|
RS-232 KIT2
PC Interface Kit
AM-RS232-KIT2
$49.95 |
|
|

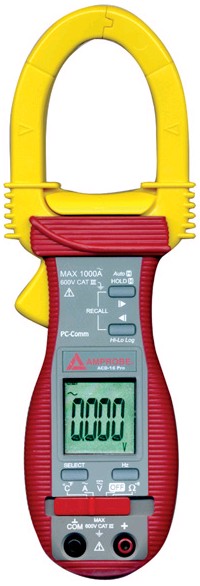

Amprobe
ACD-16 PRO / ACD-16 TRMS-PRO
1000A
Data-Logging Clamp-on Multimeters
Need the perfect tool to
troubleshoot a system?
The ACD-16’s provide a full range of
measurements, enhanced with data logging capabilities, to catch what the
eye can’t see. Double the efficiency, with an optional PC interface kit.
- TRMS & Backlight Screen (ACD-16
TRMS-PRO only)
- Measurements: AC/DC Voltage up to 600V, AC Current up to
1000A, Resistance, Frequency and Temperature
- Data-logging 5400 points
- Optional PC interface capability (RS-232
KIT2)
- Audible continuity
- Auto power off
- Automatic polarity
- Low battery indication
- Data hold
- Large, easy to read LCD display
- Accommodates conductors up to 1.77” (45mm) in diameter
- Carrying case, thermocouple, test leads, batteries (installed) and
user manual included
- Voltage overload protection for all functions up to 600V AC/DC
Specifications:
|
Safety: |
|
CAT III 600V |
|
TRMS: |
|
Yes (ACD-16
TRMS-PRO only) |
|
AC Current: |
|
40.0 / 400.0 / 1000 A |
|
AC Current Basic Accuracy: |
|
+/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz |
|
DC Voltage: |
|
600.0V |
|
DC Voltage Basic Accuracy: |
|
+/-(0.5% Rdg + 5 LSD) |
|
AC Voltage: |
|
600.0V |
|
AC Voltage Basic Accuracy: |
|
+/-(1.0% Rdg + 5 LSD) @ 50 / 60 Hz |
|
Resistance: |
|
999.9 Ohms |
|
Resistance Basic Accuracy: |
|
+/-(1.0% Rdg + 6 LSD) |
|
Frequency: |
|
5.00Hz to 500.0Hz |
|
Frequency Basic Accuracy: |
|
+/-(0.5% Rdg +4 LSD) |
|
Temperature: |
|
58 F to 572 F (-50 C to 300 C) |
|
Temperature Basic Accuracy: |
|
+/-(2.0% Rdg + 6F) +/-(2.0 % Rdg + 3C) |
Optional Accessories:
|
Orders over $200.00 ship
FREE
to 48 states |
|
RS-232 KIT2
PC Interface Kit
AM-RS232-KIT2
$49.95 |
|
|
RS-232
KIT2 Data
Recording System for Digital Multimeters or Clamp-ons
-
Software
compatible with Windows 95/98/ME/NT/2000/XP
Download
cable can be converted to USB with an optional
RS-USB
adapter (ordered separately below)
|
|
RS-USB
USB
to RS232 Converter Cable
AM-RS-USB
$49.95 |
|
|
- Converts the USB port of a personal computer to the RS-232
- Supports Windows 95 (OSR2X), 98, 2000, ME, XP Mac 8.6 and higher
- Works with Amprobe instruments with download capabilities
- Works with many other products with USB ports, including
cameras, palm pilot, card readers, mouse, security systems, etc.
- Will free up the serial port for other uses
- CE and FCC approved
|
|
ELS2A
AC Line
Splitter
LE-AM-ELS2A
$13.95 |
|
|
Amprobe
ELS2A AC Line Splitter
- Measures current without splitting AC line cords
- Two
measurement loops for increased sensitivity, X1 and
X10
- Built-in voltage measurement points to check for
voltage sags and surges
- Rated for 120V, 15Amps
|
