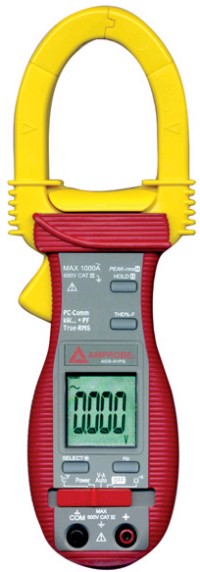

Amprobe ACD-41PQ 1000A Power Quality Clamp-on Meter with Total Harmonics Distortion measurement
Orders over $200.00 ship FREE (48 states)


Amprobe ACD-41PQ
Clamp-on Power Meter
w/ THD-F
 AM-ACD-41PQ
$299.95  $264.95

Optional Accessories:

Measures current without splitting AC line cords, Two measurement loops for increased sensitivity, X1 and X10
ELS2A
AC Line Splitter
 LE-AM-ELS2A
 $13.95

RS-232 KIT2 Data Recording System for Digital Multimeters or Clamp-ons
RS-232 KIT2
 PC Interface Kit
 AM-RS232-KIT2
 $49.95

more Power Quality Meters

more Clamp-On Multimeters

Amprobe ACD-41PQ 1000A Power Quality Clamp-on Meter with Total Harmonics Distortion measurement


The ACD-41PQ provides a simple and effective way to verify if the electrical system is affected by harmonics and get a complete Power analysis. The measuring efficiency can be increased with an optional PC interface kit.

THD-F is defined as: (Total Harmonic RMS / Fundamental RMS) x 100%

Features:

  • TRMS Measurements:
  • Total Harmonics Distortion THD, AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency, Temperature
  • Peak hold
  • Optional PC interface capability (RS-232 KIT2)
  • Audible continuity
  • Auto power off
  • Automatic polarity
  • Low battery indication
  • Data hold
  • Large, easy to read LCD display with backlight
  • Accommodates conductors up to 1.77” (45mm) in diameter
  • Carrying case, test leads, batteries (installed), thermocouple and manual included
  • Voltage overload protection for all functions up to 600V AC/DC

Specifications:

TRMS:     YES
AC Current:     40.0 / 400.0 / 1000 A
AC Current Basic Accuracy**:     +/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz
DC Voltage:     600.0V
DC Voltage Basic Accuracy**:     +/-(0.5% Rdg + 5 LSD)
AC Voltage:     600.0V
AC Voltage Basic Accuracy**:     +/-(1.0% Rdg + 5 LSD) @ 50 / 60
Resistance:     999.9 Ohms
Resistance Basic Accuracy**:     +/-(1.0% Rdg + 6 LSD)
Frequency:     5.00Hz to 500.0Hz
Frequency Basic Accuracy**:     +/-(0.5% Rdg +4 LSD)
THD-F *:     0.0% to 99.9%
THD-F * Basic Accuracy**:     1.5% of Reading + 6d @ Fund Frequency
Active Power (W):     0 to 600.0 kW
Active Power (W) Basic Accuracy**:     +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Reactive Power (VAR):     0 to 600.0 kVAR
Reactive Power (VAR) Basic Accuracy**:     +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th & PF > 0.7
Apparent Power (VA):     0 to 600.0 kVA
Apparent Power (VA) Basic Accuracy**:     +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th
Power Factor:     0.10 to 0.99
Power Factor Basic Accuracy**:     +/- 3 LSD @ Harmonics Fund to 21th
Temperature:     -58 F to 572 (-50 C to 300 C)
Temperature Basic Accuracy**:     +/-(2.0% Rdg + 6F) +/-(2.0 % Rdg + 3C)



Power Quality Clamp-on Meter Comparison Chart:

   FEATURES    ACD-31P ACD-41PQ

ACD-56 HPQ

TRMS Measurement

Yes

Yes

AC Current

40.00 / 400.0 / 1000 A

0 - 399.9 A

Voltage AC/DC

600.0 V

1.6 - 599.9 V

Resistance

999.9 Ohms

0 – 499.9 / 999/ 1999 Ohms

Frequency

5.00Hz to 500.0 Hz

40.0 - 399.9 Hz

Active Power (W)

0 to 600.0 kW

N/A

Reactive Power (VAR)

0 to 600.0 kVAR

N/A

Apparent Power (VA)

0 to 600.0 kVA

N/A

Power Factor

0.10 to 0.99

0.20 - 1.00

THD-R

N/A

0.0% to 99.9%

N/A

THD-F

N/A

0.0% to 99.9%

N/A

Temperature

-50 °C to 300 °C
(-58 °F to 572 °F)

N/A

AC Peak Voltage

N/A

10 to 850 V @ 1ms Rt

AC Peak Current

N/A

10 to 800 A @ 1ms Rt

Voltage / Current Harmonics

N/A

THD, Individual harmonics
1 to 25


Optional Accessories:

Orders over $200.00 ship FREE to 48 states

ELS2A
AC Line Splitter
 LE-AM-ELS2A
 $13.95
Amprobe ELS2A AC Line SplitterMeasures current without splitting AC line cords, Two measurement loops for increased sensitivity, X1 and X10
  • Measures current without splitting AC line cords
  • Two measurement loops for increased sensitivity, X1 and X10
  • Built-in voltage measurement points to check for voltage sags and surges
  • Rated for 120V, 15Amps

RS-232 KIT2
 PC Interface Kit
 AM-RS232-KIT2
 $49.95
RS-232 KIT2 Data Recording System for Digital Multimeters or Clamp-ons -RS-232 KIT2 Data Recording System for Digital Multimeters or Clamp-ons

Software compatible with Windows 95/98/ME/NT/2000/XP

Download cable can be converted to USB with an optional RS-USB adapter (ordered separately below)

more Power Quality Meters

more Clamp-On Multimeters
