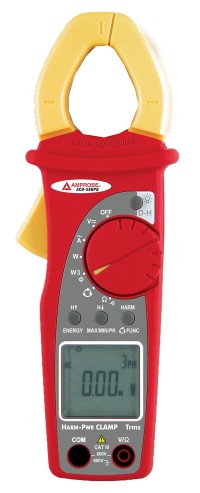

Amprobe ACD-56 HPQ Power Quality Clamp-on Meter
Orders over $200.00 ship FREE (48 states)


Amprobe ACD-56 HPQ
PQ Clamp-on Meter
 AM-ACD-56-HPQ
$599.95  $524.95

Optional Accessories:

Measures current without splitting AC line cords, Two measurement loops for increased sensitivity, X1 and X10
ELS2A
AC Line Splitter
 LE-AM-ELS2A
 $13.95

more Power Quality Meters

more Clamp-On Multimeters

Amprobe ACD-56 HPQ 400A Power Quality Clamp-on Meter


These Instruments combine the standard features of professional clamp-on meters with full power analyzing capabilities. View individual Harmonics with the ACD-56 HPQ

Features:

  • TRMS Measurements
  • AC Current up to 400A
  • AC/DC Voltage up to 600V
  • Active, Reactive and Apparent Power Single/Three Phase
  • Power Factor, Cos Ø Single/Three Phase/Energy
  • Frequency (with test leads and jaw)
  • Phase sequence with single wire (patented)
  • Resistance & Continuity
  • Autorange
  • Auto Power OFF
  • Backlight
  • Data Hold
  • MAX/MIN/AVG recording
  • Fast PEAK function (1ms)
  • Low battery indication
  • Voltage and Current Harmonics up to 25th with THD%

Specifications:

AC/DC Voltage:     1.6 - 599.9V ±(1% Rdg + 3 LSD)
AC Peak Voltage @ 1ms response time:     10 - 850V ±(5% Rdg + 10 LSD)
AC Current:     0 - 399.9V ±(1% Rdg + 3 LSD)
AC Peak Current @ 1ms response time:     10 - 800A ±(5% Rdg + 10 LSD)
Resistance:     0 – 499.9/999/1999Ω ±(1% Rdg + 5 LSD)
Frequency (with test leads and jaw):     40.0 - 399.9Hz ±(0.5% Rdg + 1 LSD)
Voltage/Current Harmonics:     THD, Individual harmonics 1 to 25 Harmonics 1 to 16 @ ±(10.0% Rdg + 5 dgt)**
Power:     Active, Reactive and Apparent
Power Factor, Cos Ø:     0.20 - 1.00 ±(2% Rdg + 2 LSD)



Power Quality Clamp-on Meter Comparison Chart:

   FEATURES    ACD-31P ACD-41PQ

ACD-56 HPQ

TRMS Measurement

Yes

Yes

AC Current

40.00 / 400.0 / 1000 A

0 - 399.9 A

Voltage AC/DC

600.0 V

1.6 - 599.9 V

Resistance

999.9 Ohms

0 – 499.9 / 999/ 1999 Ohms

Frequency

5.00Hz to 500.0 Hz

40.0 - 399.9 Hz

Active Power (W)

0 to 600.0 kW

N/A

Reactive Power (VAR)

0 to 600.0 kVAR

N/A

Apparent Power (VA)

0 to 600.0 kVA

N/A

Power Factor

0.10 to 0.99

0.20 - 1.00

THD-R

N/A

0.0% to 99.9%

N/A

THD-F

N/A

0.0% to 99.9%

N/A

Temperature

-50 °C to 300 °C
(-58 °F to 572 °F)

N/A

AC Peak Voltage

N/A

10 to 850 V @ 1ms Rt

AC Peak Current

N/A

10 to 800 A @ 1ms Rt

Voltage / Current Harmonics

N/A

THD, Individual harmonics
1 to 25


Optional Accessories:

Orders over $200.00 ship FREE to 48 states

ELS2A
AC Line Splitter
 LE-AM-ELS2A
 $13.95
Amprobe ELS2A AC Line SplitterMeasures current without splitting AC line cords, Two measurement loops for increased sensitivity, X1 and X10
  • Measures current without splitting AC line cords
  • Two measurement loops for increased sensitivity, X1 and X10
  • Built-in voltage measurement points to check for voltage sags and surges
  • Rated for 120V, 15Amps
