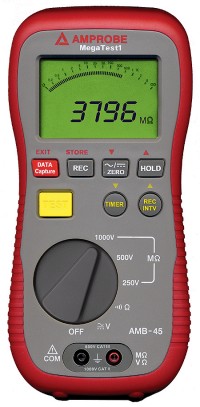

Amprobe AMB-45 Digital Megohmmeter & Insulation Resistance Tester
(click photo for larger Image)

(Ships FREE to 48 States)


AMB-45 Digital Megohmmeter
AM-AMB-45
$549.95 $499.95

 >> Category: Megohmmeters & Ground Resistance Meters

Related:

Amprobe AMB-25 Digital Megohmmeter & Insulation Resistance Tester
Amprobe AMB-25 Digital Megohmmeter



Store Menus
> Automotive
> Blue Print Reading
> Building Code / ADA
> Business/Office Related
> Calculators/Measuring
> Concrete / Masonry
> Construction Related
> Cost Guides
> Electrical Related
 > 2017 NEC and Related
 > 2014 NEC and Related

 > 2011 NEC and Related
 > 2008 NEC  > 2005 NEC
 > Alt Energy / Green Bldg
 > Basic Electricity
 > Electrical Calculations
 > Communications / VDV
 > DataComm Test
 > DataComm Tools
 > Electrical Exam Prep
 > Electrical Estimating
 > Electrical Safety
 > Electrical Theory

 > Hazardous Locations
    & Materials (HazMat)

 > Industrial Electricity
 > Insulated Tools
 > Low Voltage
 > PPE FR Clothing
 > Residential Wiring
 > PLC
/ Motor Controls

> Test Equipment

> Electrician's Tools
 > Utility Related
> Electrical Supplies
> Electronics & Related
> Emergency / Rescue
> Exam Prep - Electrical
>
Exam Prep - HVAC
> Exam Prep-Mechanical
> Fire / Firefighting
> Gifts for the Trades
> Green Bldg / LEEDS
> Hazardous Locations
   & Materials (HazMat)
> Hobby / Build-it Related
> HVAC-R / Mechanical
   > HVAC Exam Prep
   >
HVAC Tools
> Inspection Related
> Insulated (1000v) Tools
> Maintenance Related
> New Items & Specials
> Plumbing / Mechanical
> Rack-A-Tiers Store
> Safety Related
> Small Engines
> Smart Box Store
> Software
> Spanish Titles
> Test Equipment
> Tools
> Utility Related
> VDV Test   > VDV Tools
> Welding
> Work Gear

Amprobe AMB-45 Digital Megohmmeter,
Insulation Resistance Tester

Includes Built in Voltmeter!

  • Tests insulation of wires, cables, transformers and electrical motors Tests insulation of wires, cables, transformers and electrical motors
  • Selectable test voltages 250V, 500V and 1000V
  • Programmable timer to perform the Dielectric Absorption Ratio Test
  • Sensitive Ohmmeter for checking resistance of motor windings
  • Built in voltmeter
  • Fast and easy to use, rugged durable design
  • Internal memory (99 datapoints) to store measurements for future reference
  • Data download to PC
  • Comes as a complete kit including test leads, PC software, Cable and Carrying Case
  • CAT III 600V
  • 1 year Warranty
Specifications:

Insulation resistance with 250, 500& 1000VDC test voltages:     0- 4.000/40.00/400.0/4000MΩ 3% Rdg 5 LSD < 2GΩ 5% Rdg 5 LSD <4GΩ
Low resistance:     0- 400.0, 4000Ω 1% Rdg + 5 LSD
AC/DC Voltage:     0.1 - 600.0V 1.5% Rdg 5 LSD


Display:
     70 x 46mm LCD with 60 segment analog bar Indicator.
Over range Indication:
     "OL" will be shown on the LCD Panel when an out of range measurement is made.
Low Battery Indication:
     The symbol is displayed indicating a low battery condition.
Sampling Rate:
     2.5 times/sec Digital Display; 10 times/sec Bar Graph
Power Source:
     1.5V AA size Battery X 8
Operating Temperature and Humidity:
     00C to 400C ( 320F to 1040F ), below 80% RH
Storage Temperature:
     -100C to 600C ( 140Fto 1400F )
Dimension:
     230 x 116 x 62 mm ; 9 x 4.6 x 2.4 inch
Weight:
     Approx. 750g (with battery)
Accessories:
     Test Lead, Large Jaw Alligator Clips, Batteries, Instruction Manual, Carrying Case, software, RS-232 cable.

Spec Sheet (PDF)

* * * * * * * *

Digital Megohmmeter Comparison Chart:

FEATURES

AMB-45

AMB-25

AMB-6D

Insulation resistance
(50 VDC)
N/A 20.00, 50.0, 100.0MΩ
Insulation resistance
(100 VDC)

N/A

20.00, 100.0, 200.0MΩ
Insulation resistance
(250 VDC)
4.000, 40.00, 400.0, 4000MΩ 40.00, 400.0MΩ 20.00, 200.0, 500.0MΩ
Insulation resistance
(500 VDC)
4.000, 40.00, 400.0, 4000MΩ 400.0, 1000.0MΩ 20.00, 200.0, 500.0, 1000MΩ
Insulation resistance
(1000 VDC)
4.000, 40.00, 400.0, 4000MΩ 400.0, 2000.0MΩ 20.00, 200.0, 1000.0, 2000MΩ
Resistance (9V)

N/A

999.9Ω

20.00, 100.0Ω
Low Resistance

400.0, 4000Ω

N/A

10.00Ω

Voltage AC/DC

600.0V

N/A

600.0V



AM-AMB-45
$549.95 $499.95
AM-AMB-25
$309.95
Discontinued
