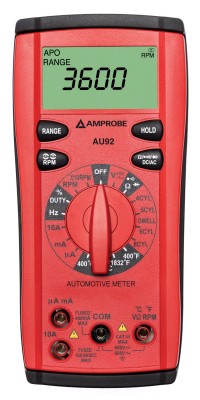

AU92 Automotive Multimeter w/ Dwell
Click Photo for Larger Image


AU92 Automotive Multimeter
 AM-AU92
$129.95  $119.95

Related:

automatically selects between AC voltage, DC voltage or resistance measurement based on the test point to which the leads are connected.
 Amprobe PM55A Precision Pocket Multimeter


Amprobe AU92 Automotive Multimeter w/ Dwell

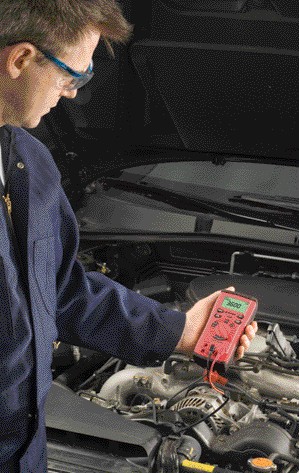

Model AU92 is a full featured Multimeter that has additional measurement for automotive servicing.

Model AU92 is a full featured Multimeter that has additional measurement for automotive servicingIt offers a built-in thermometer to measure air, surface or immersion temperatures.

It also tests engine RPM and dwell in addition to standard Multimeter features of voltage, current, resistance and continuity.

Perform accurate RPM measurements for 2- and 4-stroke automotive engines using the Inductive Pickup tool.

A well designed tool for your automotive testing needs.

Features:
  • Performs all standard electrical test for on-car and bench troubleshooting
  • Tests engine RPM and dwell
  • Capacitance, Frequency and Temperature
  • Measures DC/AC voltage, DC/AC current, resistance, diodes and continuity beeper, duty cycle
  • Accurate RPM measurements for 2- and 4-stroke automotive engines using the inductive probe
  • Locate faulty wiring and components
  • Data Hold button retains display data
  • Protective holster with magnetic hanging strap
  • Compact size
  • Includes inductive pick-up probe carrying case, test leads, test lead extender tips, threaded alligator clips, type k temperature probe, spare fuse

Battery Life:   150 hours typical with carbon zinc.
Size:   6.5 x 3.1 x 1.9 in.
Weight:   11.1 oz. including holster
Safety:   Meets IEC61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts AC & DC; Class II; Pollution degree: 2; EN61010-2-032

Specifications:

DC VOLTS:     400 mV, 4 V, 40 V, 400 V, 600 V
Resolution:     0.1 mV
Input impedance:     400 mV >100 MΩ 4 V:10 MΩ 40 V ~ 600 V: 9.1 MΩ
Overload protection:     600VDC or AC rms
AC VOLTS:     400 mV, 4 V, 40 V, 400 V, 600 V
AC VOLTS:     400 mV (50 ~ 100 Hz)
AC VOLTS:     4, 40, 400, 600 V (50 ~ 500 Hz)
Resolution:     0.1 mV
Input impedance:     400 mV >100 MΩ 4 V 10 MΩ 40 V ~ 600 V: 9.1 MΩ
Overload protection:     600 VDC or AC rms
DC CURRENT:     400 ľA, 4000 ľA, 40 mA, 400 mA, 10 A
DC CURRENT:     400 ľA to 400 mA ranges
DC CURRENT:     10 A range

Spec Sheet (PDF)

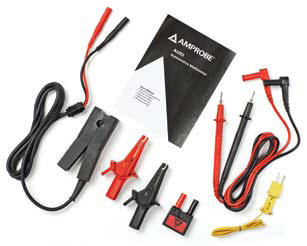

Includes inductive pick-up probe carrying case, test leads, test lead extender tips, threaded alligator clips, type k temperature probe, spare fuse

Included Accessories:

Includes inductive pick-up probe carrying case, test leads, test lead extender tips, threaded alligator clips, type k temperature probe, spare fuse.
