Amprobe DM-4  Power Quality Recorder


Simultaneous Multifunction Recorder

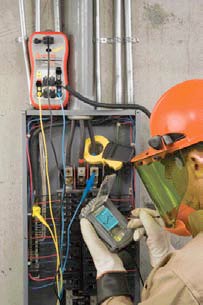

An innovative Remote User Interface (PDA) allows safe, easy and convenient operation of the device remotely.The DM-4 addresses the needs of the most demanding Power Quality professionals.

The device incorporates full set of measuring features crucial for complete Power Quality analysis. An innovative Remote User Interface (PDA) allows safe, easy and convenient operation of the device remotely.

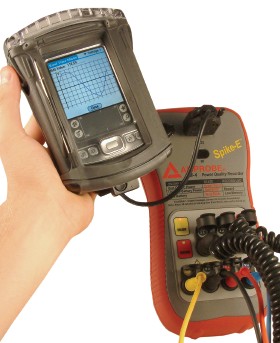

The Remote User Interface (PDA) is also used for data viewing, analysis and transfer. Independently, the DM-4 can be used directly with the PC type of computer.

Since the DM-4 does not have any control buttons on its enclosure, it is protected against setup changes by unauthorized persons while the device is recording.



  • The Remote User Interface (PDA) is also used for data viewing, analysis and transfer.True RMS (TRMS)
  • Extremely easy to setup and operate
  • Comes as a complete kit: carrying case, CTs, test leads, PC software & download cable, Remote User Interface PDA) w/ protective hard case and interface cable are included with product
  • Rugged Remote User Interface with memory for easy data downloads in the field and increased safety
  • Works with single (two and three wire) and three phase systems (Y and Delta)
  • Detects and records voltage spikes 100 nS or slower
  • Detects and records voltage Sags and Surges
  • Built in scope displays waveforms
  • Records all parameters (single or three phase) simultaneously
  • Manual and programmable recording start
  • Selectable fundamental frequency of 50 or 60 Hz
  • Special data compression system and user selectable rates allow recording from several hours to several years
  • Download capabilities with PC (Windows compatible software) or PDA (Palm OS)
  • Line or battery powered
  • Spec Sheet (PDF)

DM 4 Specifications:

Supplied Current Transducer:     1000A Standard CT, 2” internal diameter CT, Input accuracy: +/-(2% Rdg + 2 LSD)
AC Current:     Standard CT (DM-CT-HTA): 5 - 1000A Or optional Small size CT (DM-CT-100): 1A – 100A , Input accuracy: +/-(2% Rdg + 2 LSD)
AC Voltage including Sags and Surges:     From 20V – to 1000V, Accuracy: +/-(3% Rdg + 2 LSD)
Voltage Transients:     200-6000Vpp Duration > 100nS , Accuracy: ±10% Rdg
Harmonics (Voltage and Current):     THD, DC and individual up to 51th, Accuracy: +/-(5% Rdg + 2 LSD) @ DC to 25 harmonics**
Power:     Working (W), Reactive (VAR) and Apparent (VA) , Accuracy: +/-(3.0% Rdg + 2 LSD)
Energy:     Working (kWh), Reactive (VARh) and Apparent (VAh), Accuracy: +/-(3.0% Rdg + 2 LSD)
Peak Demand:     KW), Accuracy: +/-(3.0% Rdg + 2 LSD)
Power Factor (True and Displacement):     0.00 – 1.00 Accuracy:+/-3%
Phase sequence:     1 - 2 - 3
Selectable Fundamental Frequencies:     50/60 Hz
Available Recording Time:     Several hours to several years depending on setup

Optional Accessories:
Orders over $150.00 ship FREE to 48 states

DM-CT-100
Current Transducer
 AM-DM-CT-100
 $164.95
 (each)
DM-CT-100 Current Transducer
100A Current Transducer
  • Optional accessory for the DM-III, DM-4, Amprobe digital recorders
  • Current measurement from 0.5A to 100A
  • Output sensitivity 10mV / A

* * * * * * * *
