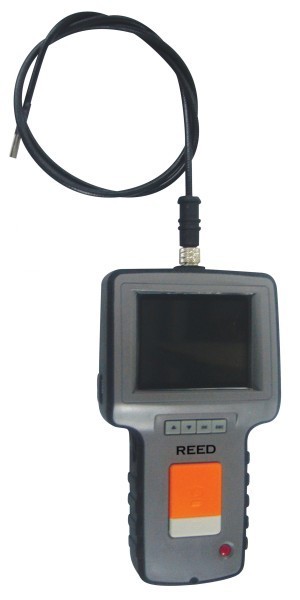

REED MIGS-6100 Video Inspection System

Features:

  • 5.5mm O.D. probe can be easily inserted through most openings
  • 3.5" extra-wide view angle camera takes high resolution 640 x 480 pictures and TFT monitor provides clear, full images with minimal image loss
  • Video output function can transfer video images to a remote monitor or TV
  • Stepless illumination adjustment
  • 1GB memory card can hold 28,000 photos
  • With 4 high-brightness white LED light sources, every detail of you target can be illuminated
  • Optimized illuminated design can highlight most cracks and burn marks on highly reflective surfaces
  • Oil and scratch-resistant tempered glass not only protects the camera, but also maintains high image resolution
  • Skidproof, anti-shock ergonomic design allows for greater mobility and enhanced images
  • Perform all tasks with easy to operate multifunction keys
  • You can easily install different probe assemblies right in the field
  • Records up to 4 hours continuously after a 2-hour charge (using AC adapter)
  • Includes USB cable, video cable, AC adapter, 1GB SD memory card and hard carrying case

Specifications:

  • Image Sensor Resolution: Dynamic: 320(H) x 240(V); Static: 640(H) x 480(V)
  • Frame Rate: 30 fps
  • S/N Ratio: 42 dB
  • Exposure: Automatic
  • White Balance: Fixed
  • Field of View (FOV): 67
  • Depth of Field (DOF): 1.5cm - 10cm
  • Light Source: 4 white LEDs, 0-275 lux/4cm
  • Display: 3.5" TFT LCD monitor, 320x240 pixels
  • Interface: Mini USB 1.1/AV Out/AV In
  • Video Out Format: NTSC & PAL
  • Recording Medium: SD card (1GB, upgradeable to 2GB)
  • Power Supply: 110-220 VAC to 5.5 VDC adapter
  • Dimensions of Probe: 5.5mm tip diam. x 1m
REED MIGS-6100 Video Inspection Camera System




REED MIGS-6100 Video Inspection Camera

RD-MIGS-6100
$1795.00 $1699.00

REED MIGS-6100 Video Inspection Camera

Orders over $300 ship FREE to 48 States

*  *  *  *  *  *  *
Accessories:



35 Mirror

RD-MIGS-6M35
$70.00


45 Mirror

RD-MIGS-6M45
$70.00


60 Mirror

RD-MIGS-6M60
$70.00




2M Extension Cable

RD-MIGS-6200C
$550.00 $521.00


3M Extension Cable

RD-MIGS-6300C
$650.00 $617.00



REED Video Inspection Scopes:
REED BS-150 Video Inspection Camera
REED BS-150 Video Inspection Camera
REED MIGS-6100 Video Inspection System
REED MIGS-6100 Video Inspection System

*  *  *  *  *  *  *
