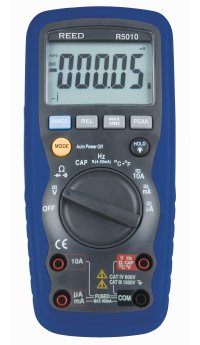

REED R5010 TRMS MultiMeter w/Temp
R5010 1000V TRMS
MultiMeter w/Temp

REED R5008 Digital MultiMeter w/Temp
REED R5008 Digital
MultiMeter w/Temp

Test Equipment:
Amprobe Test Tools
Zircon Logo
Ideal Industries

Reed Instruments - Test and Measurement Equipment
TIF Logo


Anemometers/ Air Flow Meters
Calibrators
Circuit Breaker Finders/ Tracers
Clamp-On Meters/ Accessories
DataComm Testers & Certifiers
Electrical Testers
Electrical / HVAC Test Kits
Environment Meters
Force / Hardness Gauges
Gas Detectors
Ground Resistance Testers
Humidity Meters
Insulation Resistance Testers
IR (Infrared) Thermometers
Leak Detectors
Light Meters
Manometers
Megohmmeters
Moisture Meters
Multi-Function Meters
Multimeters & Accessories
PH /ORP / DO / Conductivity
Phase Sequence Testers
Power Quality Analyzers
      & Recorders
Solar Power Meters
     > Analyzers
Sound Level Meters
      & Calibrators
Tachometers
Thermal Imaging Camera
Thermometers
Thickness / Torque / Vibration
Underground Locators
Video Inspection Tools
Voltage Sensors
Water Quality Meters
Wire Tracers

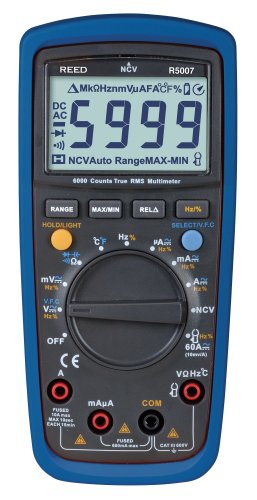

R5007 True RMS Digital MultiMeter (DMM)

Features:

  • Measures AC/DC voltage and current, resistance, frequency ratio, variable frequency voltage (VFC) capacitance and temperature
  • Also capable of detecting non-contact AC voltage and current measurements with optional clamp-on adapter
  • True RMS AC voltage and current measurements
  • Diode test and continuity check functions
  • Max/Min, Data hold and Relative modes
  • Auto and manual ranging
  • Low battery indicator and auto power-off
  • Conforms with IEC61010 Cat. III 600V
  • NIST Traceable Certification Available
  • Includes test leads, type K thermocouple probe and batteries

Specifications:

  • AC/DC Voltage Range: 60.00, 600.0mV, 6.000, 60.00, 600.0V, 600V
    Resolution: 10V, 0.1, 1, 10mV, 0.1, 1V
    Accuracy: AC: (0.8% rdg. + 3 dgt.); DC: (0.7% rdg. + 3 dgt.)
  • AC/DC Current Range: 600.0, 6000A, 60.00, 600.0mA, 6.000, 10.00A
    Resolution: 0.1, 1, 10A, 0.1, 1, 10mA
    Accuracy: AC: (1.0% rdg. + 3 dgt.); DC: (0.7% rdg. + 2 dgt.)
  • Resistance Range: 600.0Ω, 6.000, 60.00, 600.0kΩ, 6.000, 60.00MΩ
    Resolution: 0.1, 1, 10, 100Ω, 1, 10kΩ
    Accuracy: (0.8% rdg. + 2 dgt.)
  • Capacitance Range: 9.999nF, 99.99nF to 999.9F,
    9.999 to 99.99mF
    Resolution: 1pF, 10pf to 0.1F, 1F to10F
    Accuracy: (4% rdg. + 5 dgt.)
  • VFC Range: 200.0 to 600V
    Resolution: 0.1, 1V
    Accuracy: (4.0% rdg. + 3 dgt.)
  • Frequency Range: 9.999Hz to 9.999MHz Resolution: 0.001Hz to 0.001Mz
    Accuracy: (0.1% rdg. + 4 dgt.)
  • Temperature Range: -40 to 1000C (-40 to 1832F)
    Resolution: 1C (1F)
    Accuracy: C: (2.0% rdg. + 3 dgt.); F: (2.5% rdg. + 5 dgt.)
  • Duty Cycle: 0.1 to 99.9%
  • Diode Test: Around 3V
  • Power Supply: 2 x 1.5V "AA" batteries
  • Dimensions: 175 x 80 x 48.5mm
  • Weight: 370 g


R5007 True RMS Digital MultiMeter (DMM)

>> R5007 DataSheet

>> R5007 Manual




REED R5007
TRMS MultiMeter

RD-R5007
$89.00

REED R5007 TRMS MultiMeter

*  *  *  *  *  *  *



REED R5007 TRMS MultiMeter w/ NIST

RD-R5007-NIST
$155.03

REED R5007 TRMS MultiMeter w/ NIST

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States

*  *  *  *  *  *  *
