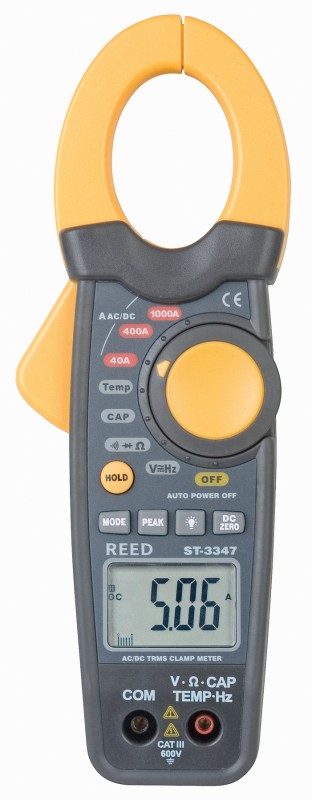

REED ST-3347 1000A AC/DC TRMS Clamp-on

Features:                             A Best Seller!

• Measure AC/DC Current, Voltage, Resistance, Capacitance, Frequency & Temperature
• True RMS reading instrument permits precise measurements regardless of waveforms
• 4000-count digital display with 40-segment analog bargraph
• Measures temperature in either °C or °F
• Audible continuity test and diode check
• Peak hold function
• Data hold function
• DCA zero function
• Low battery indication and auto power off
• Double molded housing
• Electronic overload protection
• Designed to meet IEC61010-1 Cat. III 600V
• Includes AD-1 temperature input adapter, TP-01 type K thermocouple wire probe, test leads, battery, and carrying case

Specifications:

• AC Current Max. Range/Resolution: 1000A/10mA
  Basic Accuracy: ±2.5% rdg. ±5 dgt.
• DC Current Max. Range/Resolution: 1000A/10mA
  Basic Accuracy: ±3.0% rdg. ±4 dgt.
• AC Voltage Max. Range/Resolution: 600V/0.1mV
  Basic Accuracy: ±0.8% rdg. ±2 dgt.
• DC Voltage Max. Range/Resolution: 600V/0.1mV
  Basic Accuracy: ±1% rdg. ±4 dgt.
• Resistance Max. Range/Resolution: 40MΩ/0.1Ω
  Basic Accuracy: ±1.0% rdg. ±4 dgt.
• Capacitance Max. Range/Resolution: 40μF/0.01nF
  Basic Accuracy: ±3.0% rdg. ±5 dgt.
• Frequency Max. Range/Resolution: 10MHz/0.01MHz
  Basic Accuracy: ±1.2% rdg. ±3 dgt.
• Temperature Max. Range/Resolution: 1000°C (1832°F)/ 1°C(°F)
  Basic Accuracy: ±3.0% rdg. ±5 dgt.
• Dimensions: 229(H) x80(W) x 49(D) mm
• Weight: Approx. 303 g
