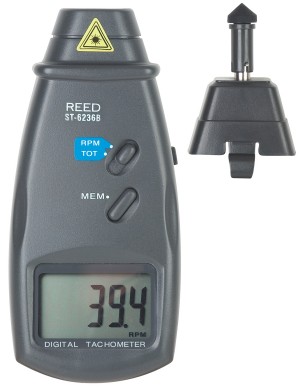

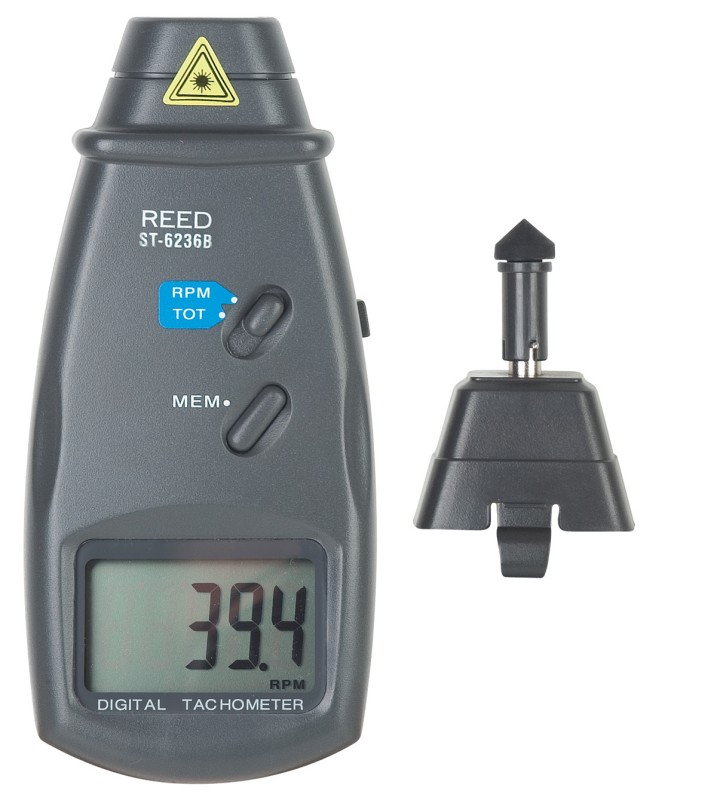

REED ST-6236B Combination Tachometer

 Features:                          A Best Seller!

  • Dual function unit with both contact and non-contact capabilities
  • Supplied with adapters for mpm, rpm and surface speed measurements
  • Non-contact function utilizes laser light beam for improved accuracy
  • Recalls Max/Min and last values
  • Large, easy to read display
  • 0.05% accuracy
  • Includes battery and carrying case

Specifications:

  • Photo Range: 5 to 99,999 rpm
  • Contact Range: 5 to 19,999 rpm
  • Surface Speed Range: 0.05 to 1,999 mpm
  • Resolution: 0.1 rpm
  • Accuracy: ±(0.05% + 1 digit)
  • Sampling Rate: 1/second
  • Display: 5-digit LCD
  • Dimensions/Weight: 6.3 x 2.8 x 1.5"/7.9 oz




REED ST-6236B Combination Tachometer


REED ST-6236B Combo Tachometer

RD-ST-6236B
$159.00

REED ST-6236B Combination Tachometer
Replacement Parts:


Replacement Speed Wheel

RD-ST-WHEEL
$10.00


Replacement Shaft Extension

RD-ST-SHAFT
$10.00




Replacement Funnel Tip

RD-ST-FUNNEL
$9.00


Replacement Cone Tip

RD-ST-CONE
$5.00
