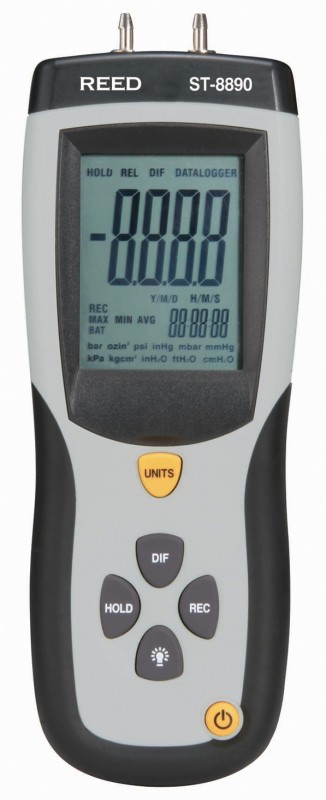

REED ST-8890 Manometer, w/ USB Output

Features:

  • Measure gauge and differential pressure for 0 to 5 psi
  • 11 selectable units of measure: psi, in H2O, bar, mbar, kPa, inHg, mmHg, oz in2, ft H2O, cmH2O, and kg cm2
  • Min/Max/Avg recording with time stamp
  • Data hold freezes the displayed reading
  • Dual LCD readouts with backlighting
  • Push button zero adjust and offset readings
  • Low battery indication with auto power off
  • USB output
  • Includes USB cable, tubing, hard carrying case and battery


Specifications:

  • Pressure Ranges: 5.000 psi; 138.3 inH2O; 0.344 bar; 344.7 mbar, 34.47 kPa; 1.018 inHg; 258.5 mmHg, 80.00 ozin2; 11.53 ftH2O; 351.5 cmH2O; 0.351 kgcm2
  • Resolution: 0.001 psi; 0.1 in H2O; 0.001 bar; 0.1 mbar, 0.01 kPa; 0.01 inHg; 0.1 mmHg, 0.01 oz in2; 0.01 ft H2O; 0.1 cmH2O; 0.001 kg cm2
  • Accuracy: ±0.3% f.s.
  • Repeatability: ±0.2% f.s.
  • Hysteresis: ±0.29% f.s.
  • Maximum Pressure: 20 psi
  • Response Time: 0.5 second
  • Power Supply: Single 9V battery

REED ST-8890 Manometer, w/ USB Output




REED ST-8890
Manometer 0-5 PSI

RD-ST-8890
$149.00

REED ST-8890 Manometer, 0-5 PSI w/ USB Output


BS-6 Tripod

RD-BS-6
$59.00

Tripod

Orders over $200 ship FREE to 48 States

REED Manometers (Differential Pressure):
REED 8230 / 82100 Manometers 0-30, 0-100 psi
REED 8230 / 82100
Manometers 0-30 0-100
REED PM-9100 Manometer, 29 PSI
REED PM-9100
Manometer, 29 PSI
REED PS-9302 MultiRange Manometer
REED PS-9302
MultiRange Manometer
REED ST-8890 Manometer, 0-5 PSI w/ USB Output
REED ST-8890
Manometer
0-5psi

*  *  *  *  *  *  *
