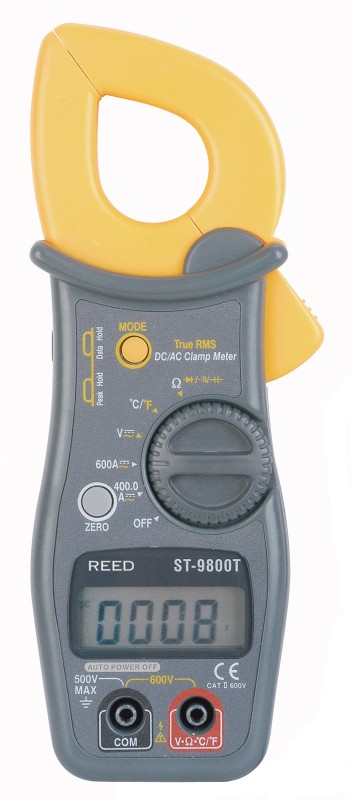

REED ST-9800T 600A AC/DC TRMS Clamp-on

Features:

• True RMS measurement
• Basic 2.5% DC current accuracy
• Resolution 0.1A
• Large 4000-count backlit display
• Data Hold
• Peak Hold
• DC current zero adjust
• Diode test and coninuity check
• Auto power off
• EN61010-1 Cat. III 600V
• Complete with AD-1 temperature input adapter, TP-01 Type K thermocouple wire probe, test leads, battery and carrying case

Specifications:

• AC Current Range: 400A, 600A
• DC Current Range: 400A, 600A
• AC Voltage Range: 400mV to 600V
• DC Voltage Range: 4V to 600V
• Resistance Range: 400MΩ
• Frequency Range: 9.999MHz
• Capacitance Range: 40.00, 400.0nF, 4.000, 40.00, 100.0μF
• Temperature Range: -4 to 1400°F/-20 to 760°C
• Jaw Opening: 1.25" (33mm)
• Dimensions: 8 x 3.2 x 1.7” (204 x 80 x 43mm)
• Weight: 6.5 oz (281g)
