Bulldog Pipe Chase Housing

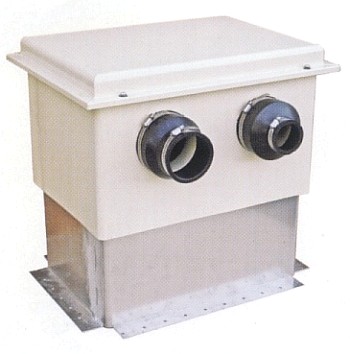

The Bulldog Pipe Chase Housing (PCH) is designed for Pipes larger then 1 1/2 inches or have insulation on them that can not be interupted like low temp refrigeration, steam, solar and dry coolers.

The Bulldog Pipe Chase Housing comes with two 4 inch start collars for seals. Pipe Exit Seals (purchased separately) may also be added as needed.

Dimensions for the Bulldog Pipe Chase Housing: (Model AL-1010-2-4)

• Housing Length  20-1/2 inches
• Housing Width   14-1/2 inches
• Housing Height (without Curb)  13-1/2  inches
  There are three parts to the Height:
  • The lid area is 2 inches.
  • The center (usable area for penetrations) 8-1/2 inches
  • The skirt (overlaping Curb) 3 inches.

• Curb Length 19-1/4 inches
• Curb Width  13-1/4   inches
• Curb Height (without Housing)  13-1/2 inches
• The Curb has a two inch flange out to screw to the roof deck.
  Screw holes are on 2 inch centers.

Orders over $200 ship FREE to 48 States
Bulldog Pipe Chase Housing PCH-AL-1010-2-4 $853.78	Medium Curb for PCH PCH-AL-1014 $243.55
Select Pipe Exit Seals

Bulldog Pipe Chase Housing w/ Curb
