Medium Pipe Chase Housing

The Medium Pipe Chase Housing (PCH) is designed to provide a leak-proof pathway to the roof for piping up to 4 Condensing Units

The Medium Pipe Chase Housing will accommodate up to 1-5/8 OD pipes using Pipe Exit Seals (purchased separately).

Dimensions for the Medium Pipe Chase Housing: (Model AL-1001)

• Housing Length  20-1/2 inches
• Housing Width   14-1/2 inches
• Housing Height (without Curb)  13-1/2  inches
  There are three parts to the Height:
  • The lid area is 2 inches.
  • The center (usable area for penetrations) 8-1/2 inches
  • The skirt (overlaping Curb) 3 inches.
• Instructions / Specifications

• Curb Length 19-1/4 inches
• Curb Width  13-1/4   inches
• Curb Height (without Housing)  13-1/2 inches
• The Curb has a two inch flange out to screw to the roof deck.
  Screw holes are on 2 inch centers.

click for larger photos

Orders over $200 ship FREE to 48 States
Medium Pipe Chase Housing PCH-AL-1001 $547.06	Medium Curb for PCH PCH-AL-1014 $243.55
Select Pipe Exit Seals

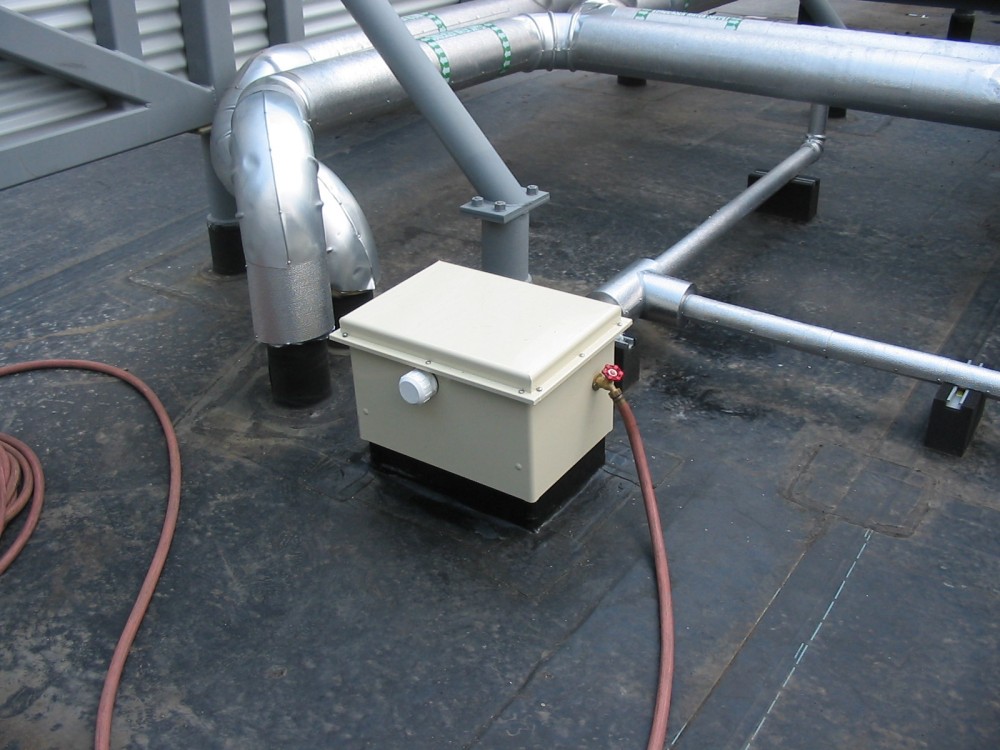

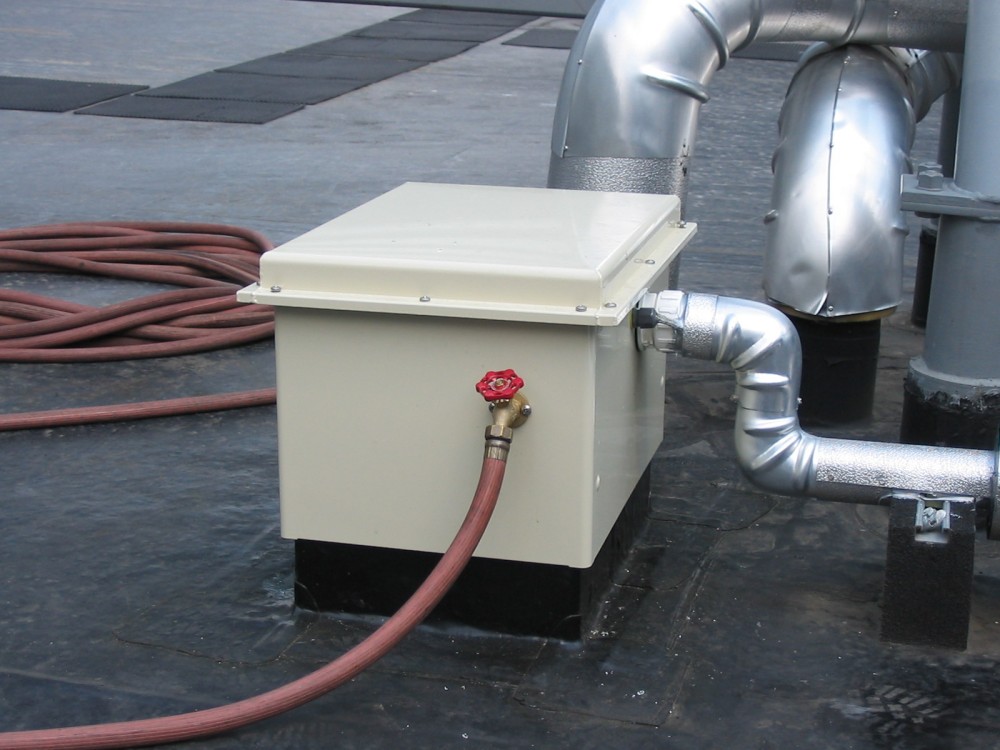

Medium Pipe Chase Housing w/ Curb

Top View
