CF12 Circuit Finder
The
CF12 offers dramatic technological improvements to the electrical
contractor, coupled with no-guesswork dependability that can be used
safely and effectively by practically any homeowner.
Now one
person can find the right circuit breaker before turning off power
to one specific circuit.
Features:
- Automatic calibration;
lights and audio indicate circuit location
- Requires no adjusting
- Works quickly and
efficiently
- Finds breakers
faster and more efficiently without trial-and-error work or
accidental shutoffs.
- Be confident the
correct circuit is found so power is not lost to computer, clocks,
or freezer.
- Scan for easy
identification and labeling of all breakers.
- Units snap together for
storage
- Ergonomic design for easy
targeting
-
Belt Clip included on Receiver
Applications:
Turn off that circuit before you:
- Change an outlet
- Upgrade wall switches
- Install dimmer switches
- Install new lighting fixtures

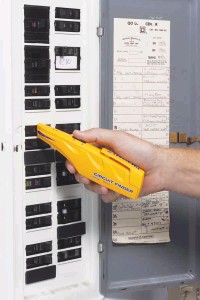

Just plug the CF12's transmitter into
the electrical outlet, then scan the breaker box with the receiver,
and the proper breaker will be identified by a
Green LED and an audible signal.
You will be confident the correct circuit is found so power will not
be lost to your computer, clocks, or freezer.
CF12 makes it easy and convenient for you to scan all the breakers
for identification and labeling.
Specifications:
Dimensions |
Receiver: 7 in. L x 1.9 in.
H x 1.4 in. W
(178 mm x 48 mm x 36 mm )
Transmitter: 5 in. long x 2.1 in. high x 1.8 in. wide
(127 mm x 56 mm x 46 mm ) |
Weight |
Receiver: 5.0 oz. ( 142 g)
(with battery)
Transmitter: 4.0 oz. (113 g) |
Battery type |
9-V alkaline |
Estimated battery life |
Approximately 50 hr. with
alkaline battery |
Power |
Transmitter:
110-120 V AC, 1.5 W max, folding 2-prong AC plug
Receiver: 9-V transistor type |
Operating temperature |
41° to 104°F (5° to 40°C) |
Storage temperature |
-20° to 150°F (-29° to
66°C) |
Humidity |
80% RH (noncondensing) |
Water resistance |
Splash and water resistant,
not waterproof |
Compliance
certifications |
UL, CUL, FCC |
|
