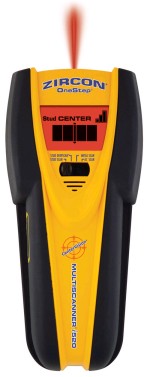

MultiScanner i520 OneStep Electronic Stud Finder & Wall Scanner by Zircon

Find the center of the stud in one pass.

MultiScanner i520 OneStep makes wall scanning fast and simple.

The ultra-bright display screen indicates direction, edge, and center of stud; signal strength indicator distinguishes between shallow and deep targets. Four detection modes for studs, deep studs, metal, and hot electrical wiring.

Stud Scan Mode
Finds the center of studs and joists up to 3/4 inches (19 mm) deep in normal mode.

Stud DeepScan® Mode
Finds studs up to 1-1/2 inches (38 mm) deep behind drywall, paneling, or plywood.

Metal Finder

Finds copper and other non-ferrous metal up to 1-1/2 inches (38 mm) deep. Finds ferrous metal such as rebar in concrete up to 3 inches (76 mm) deep.

AC Tracing

Turn off wood and metal scan to look only for hot AC to find and trace wires, even in plastic conduit.

ACT™ Auto Correcting Technology
Corrects common user errors automatically

Features:

  • Finds the center and edges of both wood and metal studs at depths of up to 1-1⁄2" (38mm)
  • Finds pipes, nails, rebar, and other hidden metal
  • Automatically recalibrates when scanning begins over a stud
  • SpotLite® Pointing System illuminates to indicate center of stud
  • Ultra-bright LCD display indicates direction, edge, and center of studs
  • Exclusive WireWarning™ Alert continuously detects hot electrical wiring

Applications:

  • Find the center and edges of wood or metal studs or joists to:
    – Hang cabinets, pictures, mirrors, and shelves securely
    – Install ceiling fans, grab bars, and chandeliers
  • Find metal pipes behind tile and in concrete
  • Find conduit, rebar, electrical boxes, exhaust vents, and ducting
  • Trace hot wires behind walls, floors, and ceilings

Specifications:

Dimensions 7.25 in. H x 3.2 in. W x 1.4 in. D
Weight 11 oz with battery
Battery Type 9-V alkaline (included)
Stud Scan Accuracy:
Up to 5/8 inch (16 mm) depth:
    Center: 1⁄8 inch (3.2 mm) typical
    Edge: 3⁄16 inch (4.8 mm) typical
Beyond 5/8 inch (16 mm) and up to 7/8 inch (22 mm) depth:
    Center: 1⁄4 inch (6.4 mm) typical

Center finding capability: up to 1-1⁄2 inches (38 mm) typical

NOTE: Sensing depth and edge detection can vary due to moisture content of materials, wall texture, and paint.

Metal Scan 1/2 inch (13 mm) diameter ferrous rod target detectable at up to 3 inches (76 mm)

1/2 inch (13 mm) diameter non-ferrous rod target detectable at up to 1-1/2 inches (38 mm)

AC Position accuracy Typically 90–250 V at 50–60 Hz within 6 in. (152 mm) of a hot unshielded wire
AC Depth In typical drywall with Romex™ wiring, wire
can be detected up to 2 in. deep
Operating temperature 40° to 120°F (4° to 49°C)
Storage temperature -14° to 140°F (-26° to 60°C)
Humidity 80% RH (noncondensing)
Water resistance Splash resistant, not waterproof
