Ideal Industries

660A Industrial Clamp Meters
w/ TightSight Bottom Display

For everything from routine current measurements to troubleshooting industrial motors and adjustable speed drives (ASDs), three 760 Series meters cover every scenario up to 660Amps AC.

With an exclusive backlit TightSight™ display, the 760 Series brings function and ease-of-use together.

The 61-764 is great for basic current measurements, but also has an array of more extensive features like a bold, bright backlit display and selectable auto power off.

With added capabilities like True RMS and 40-100Hz frequency measurement, the 61-766 gives electricians a level of certainty when measuring circuits with ASDs.

And for those who work with DC motors and circuits, the 61-768 is the right choice.

  • Measures up to 660Amps AC

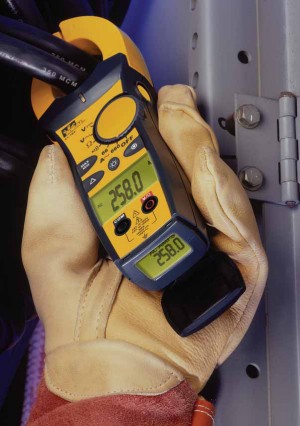

  • Exclusive TightSight™ bottom display
  • Bright, bold backlit display - (more below)

Ideal TightSight Industrial Clamp Meter Features

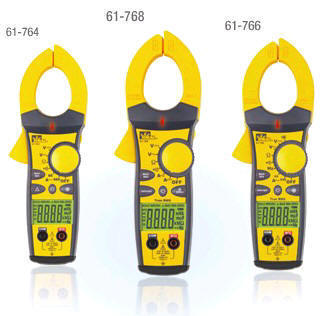

Common Features: (all Models)TightSight Clamp Meters 660A
  • Measures up to 660Amps AC
  • Exclusive TightSight™ bottom display
  • Voltage-presence warning on all lead functions (selectable audible)
  • Bright, bold backlit display
  • Tapered jaws with hook tip
  • Inrush current
  • Audible continuity
  • Selectable auto power off
  • Low battery indicator
  • CAT IV - 600V rating
  • CAT III - 1000V rating
  • 2-year warranty

Additional Features:

  • 61-766 features:
    • True RMS
    • Capacitance, Frequency measurement via clamp head
    • 66A AC low range
  • 61-768 features:
    • 660A DC current measurements
    • True RMS
  • >> see spec sheet

Range & Resolution

760 Series 61-764

61-766

61-768

Accuracy

AC Current

66.00/660.0 A

660.0 A 1.7%
DC Current 660.0 A 1.5%
AC Voltage 660m/6.600/66.00/660.0/750 V 1.2%
DC Voltage 660m/6.600/66.00/660.0/1000 V 0.5%
Resistance 660.0/6.600k/66.00k/660.0k/4.000M/10.00M Ω 1.0%
Capacitance 6.600µ/66.00µ/660.0µ F 3.0%
Frequency 20 - 400 Hz Sensitivity: ≥5A
for 20-100 Hz ≥10A for 100-400 Hz
0.1%



Features Summary: 61-764 61-766 61-768
  Data hold Yes Yes Yes
  Max/Min Yes Yes Yes
  Auto/Manual Ranging Yes Yes Yes
  Auto Power Off Yes Yes Yes
  Backlight Yes Yes Yes
  Capacitance   Yes
  Frequency   Yes
  DCA Zero     Yes
  True RMS   Yes Yes
  ID-61-764
No
Stock
ID-61-766
No
Stock
ID-61-768
No Stock
