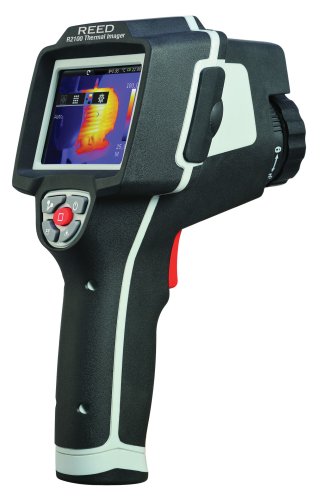

REED R2100 Thermal Imaging Camera

REED R2100 Thermal Imaging Camera Electrical Application

Features:

  • Automatic lens recognition automatically identifies the temperature calibration data associated with each of the interchangeable lenses
  • 3.5" colour TFT LCD capacitive touch screen with sun visor
  • High thermal sensitivity (NETD) of <80mK
  • Built-in laser and white LED flashlight
  • Built-in visible light digital camera
  • Includes 7.5mm (29.8 x 22.6 FOV) lens
  • 20x continuous zoom
  • Infrared and visual images, picture-in-picture, as well as visual image with infrared overlay
  • Three spot, three area with min/max and average, two-line and isothermal measurement analysis
  • Automatic hot/cold spot indicator
  • Choice of six colour palettes including custom
  • Automatic image capture
  • Save images with voice annotations
  • Video recording with voice annotations
  • Micro SD memory card extension possible
  • NIST Traceable Certification Available
  • Includes: thermal imager, 7.5mm lens, lens cap, micro SD memory card, video output cable, headset, USB cable, hood, tripod stand, shoulder strap, two batteries, charger, AC adapter, user manual, software CD (Mulitple languages) and hard carrying case

Specifications:

  • IR Resolution: 160 x 120 pixels
  • Field of View: 29.8 x 22.6
  • Detector Type: Uncooled microbolometer
  • Thermal Sensitivity (NETD): <0.08C (80mK)
  • Image Capture Frequency: 50Hz
  • Focus: Manual
  • Temperature Range: -20 to 400C (-4 to 752F)
  • Accuracy: 2C (3.6F) or 2% of reading
  • Storage Medium: 4GB micro SD card
  • Interface: USB-mini, audio, composite video (PAL and NTSC), Micro SD slot
  • Drop Test: 2m
  • Encapsulation: IP65
  • Power Supply: 7.4V lithium polymer battery
  • Battery Life: 4 hours
  • Dimensions/Weight: 243 x 103 x 160mm/920g

R2100 DataSheet     R2100 Manual (PDF)

REED R2100 Thermal Imaging Camera w/ interchangeable lenses


Optional Accessories:

Optional Lenses for R2100 Thermal Imager

7.4V Replacement Battery
Replacement/Spare Battery

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States




REED R2100 Thermal Imaging Camera
RD-R2100
$3145.00

REED R2100 Thermal Imaging Camera


REED R2100 Thermal Imager w/NIST

RD-R2100-NIST
$3343.00

REED R2100 Thermal Imaging Camera w/NIST
R2100 Thermal Imager Accessories:




$735.00
RD-RL-11

11MM Lens for R2100 Thermal Imaging Camera



$827.00
RD-RL-22

22MM Lens for R2100 Thermal Imaging Camera



$920.00
RD-RL-33

33MM Lens for R2100 Thermal Imaging Camera



$49.00
RD-R2100-7.4V

7.4V Lithium Battery for R2100 Thermal Imaging Camera

Orders over $300 ship FREE to 48 States
