CF12
Pro
Circuit Finder
Kit
A
complete circuit- finding tool kit for locating circuit breakers in
residential, commercial, and industrial environments.
The CF12 Pro extends the
flexibility of the CF12 by expanding its
working range
up to 277 volts
and by adding accessories that can connect to any type of finished
or unfinished circuit, including electrical leads, bare wire and
standard wall sockets.
 It
includes transmitter, receiver, clips, light socket adapter, blades,
and plug adapter connectors to let you plug the transmitter into the
circuit you're planning to work on.

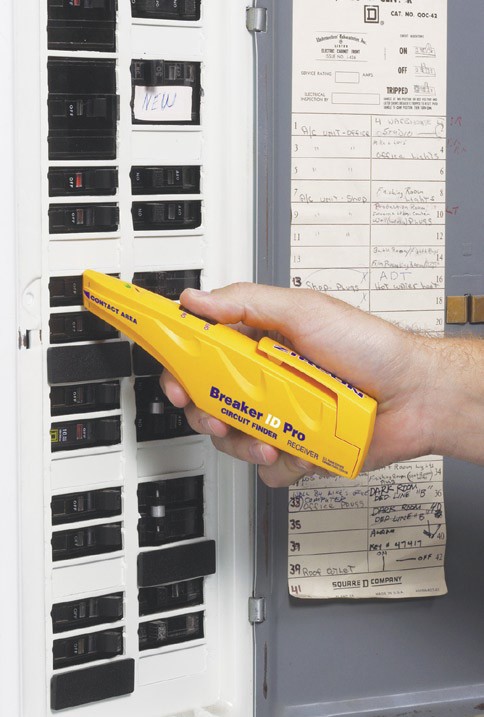

Just connect the transmitter
to
the electrical outlet, then scan the breaker box with the receiver,
and the proper breaker will be identified by a
Green LED and an audible signal.
The CF12 Pro and its
accessories come in a lightweight, jobsite-tough case that protects
the tool and eliminates the potential for lost parts.
Find
the Right Breaker Every Time!
 Features:
-
Blades allow easy access to most outlets, including industrial 230
and 240 volt
-
Patent-pending sensing technology
-
Automatic sensitivity adjustment—no knobs or dials
-
One-light simple—green LED indicates proper breaker
-
Clips provide easy access to commercial lighting circuits,
unfinished outlets, etc.
- 120
VAC plug adapter and light socket adapter to use with finished
circuits
-
Includes rugged, lockable case
-
Ergonomic design for easy targeting
- Finds breakers
faster and more efficiently without trial-and-error work or
accidental shutoffs.
- Be confident the
correct circuit is found so power is not lost to other electrical
equipment or appliances; i.e., computer, clocks, or freezer.
- Scan for easy
identification and labeling of all breakers.
-
Belt Clip included on Receiver
Applications:
- Install or remove
appliances and electronic or home theater equipment
- Work on specific
circuits in computer rooms or factories without interrupting
others
- Isolate circuits for
repair or replacement in apartment or office buildings
Specifications:
| Dimensions |
Receiver: 6.3 in. L x 1.5
in. H x 1.2 in. W
Transmitter: 4.1 in. long x 2.25 in. high x 1.5 in. wide |
| Weight |
Receiver: 5.0 oz. (with battery)
Transmitter: 5.0 oz. |
| Battery type |
9-V alkaline |
| Estimated battery life |
Approximately 50 hr. with
alkaline battery |
| Power |
80 – 277 V AC,
50 or 60 Hz |
| Operating temperature |
41° to 104°F (5° to 40°C) |
| Storage temperature |
-20° to 150°F (-29° to
66°C) |
| Humidity |
80% RH (noncondensing) |
| Water resistance |
Splash and water resistant,
not waterproof |
| Compliance
certifications |
UL, CUL, FCC |
|
