Ideal Industries

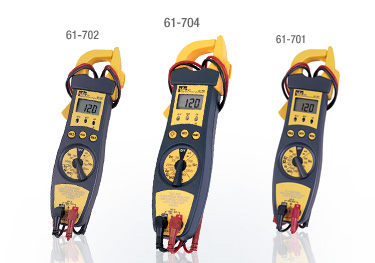

Ideal 4-in-1 Test Tools:

61-704, 61-702, 61-701



Ideal 4-in-1 Test Tools
Common Features:
(all models)
  • 200A AC Current capability
  • 1.3" Jaw Opening
  • Non-contact voltage (40-600VAC)
  • Capacitance
  • Integral lead storage
  • Auto power off
  • Ergonomic hourglass shape
  • Audible continuity
  • Diode Test
  • Data hold/max hold
  • Low battery indicator
  • Overload protection on all ranges
  • Silicone leads
  • Sleep mode
  • Compact clamp head
  • Includes carrying case
  • CAT III - 600V
  • 2-year warranty
  • >> spec sheet
Additional Features per model:
  61-701 61-702 61-704
Frequency Yes
CAT III - 600V Yes
CAT III - 1000V   Yes Yes
Data / Max hold Yes Yes Yes
Vibration mode
to verify AC voltage
  Yes Yes
Harmonics indicator   Yes Yes
Backlight     Yes
True RMS     Yes
200 Amp Clamp Meters

Use it for testing a variety of electrical parameters on branch circuits or at receptacles Use it for one-touch indication of power without test leads. Use it for tactile feel of AC voltage. Use it to ensure that a circuit contains clean power, free of harmonic distortion.
200 Amp Clamp / Multimeter

Use it for testing a variety of electrical parameters on branch circuits or at receptacles.
(all models)

Non-Contact
Voltage Tester

Use it for one-touch indication of power without test leads.
(all models)

Voltage Tester
with Shaker

Use it for tactile feel of AC voltage.
(61-702 & 61-704)

Harmonics Tester

Use it to ensure that a circuit contains clean power, free of harmonic distortion.
(61-702 & 61-704)


Specifications:

61-701

61-702 & 61-704

RANGE & RESOLUTION

BASIC ACCURACY

RANGE & RESOLUTION

BASIC ACCURACY

AC VOLTAGE 200.0/600 V 1.2% 2000m/200.0/750 V 1.2%
DC VOLTAGE 20.00/200.0/600 V 0.5% 2000m/200.0/1000 V 0.5%
AC CURRENT

200.0 A

3.0% 200.0 A 3.0%
RESISTANCE

200.0/200.0k Ω Scale

1.0% 200.0/200.0k Ω 1.0%
CAPACITANCE

200.0µ F

3.0% 200.0µ F 3.0%
FREQUENCY 2.000k/20.00k/40.00k Hz (Auto)

0.1%



61-701 Clamp Meter
ID-61-701
Discontinued



61-702 Clamp Meter
ID-61-702
Discontinued



61-704 Clamp Meter
ID-61-704
$
208.82

Orders over $300 ship FREE to 48 States
