Ideal UnderGround® Below Grade/Direct Burial Wire Connectors

Ideal UnderGround® Below Grade/Direct Burial Wire Connectors

Ideal WeatherProof & Underground Wire Connectors
UnderGround Brochure (PDF)

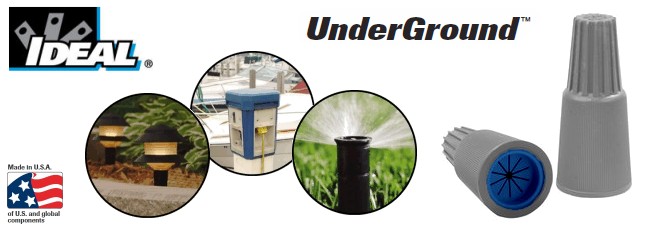

IDEAL UnderGround™ Wire Connectors are specifically designed to secure and protect wire connections in a wide variety of wet location/direct burial applications.

Thick thermoplastic shell can take a hit from accidental impacts.UnderGround™ connectors are manufactured with an extra-thick, thermoplastic shell for extreme durability and reliable connections.

These connectors are made tough and have been designed to exceed the rigorous test standards of UL 486D.

The easy application process delivers quick, safe and long-lasting connections in harsh wet location and direct burial applications.

Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.

Features:Silicone-based sealant protects against moisture and corrosion

  • Silicone-based sealant protects against moisture and corrosion
  • UL listed to 486D for use for direct burial
  • Easy to apply pre-filled twist-on wire connectors
  • Handles wire sizes from #20 to #6 AWG copper conductors
  • Expanding, live-action square-wire spring for fast, secure and long-lasting connections
  • No pre-twisting required
  • Deep skirt provides superior moisture resistance to protect connections
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

Applications:UnderGround Wire Connector Applications

  • Outdoor Facility Lighting
  • Landscape Lighting
  • Traffic Controls
  • Parking Lot & Street Lighting
  • Sump & Well Pump Installations
  • Lawn-sprinkler control systems
  • Valve Control Boxes
  • Marine Installations
  • Golf Course Installations
  • Note: For Use on Copper Wire Only. Do Not Use on Aluminum Wire. - One Time Use Only - Do Not Reuse Connector. - Not for Use in Continuous Submersion Applications
UnderGround Wire Connector Chart

Listed Wire Combinations

  Orders over $300 ship FREE to 48 States


Model 60 Gray/Gray Model 60 Blue/Blue

$34.26
25 pcs
Pkg
UnderGround™ Wire Connector, 60, Gray/Gray, 25/pkg
ID-30-1160

$121.47
100 pcs
Box
UnderGround™ Wire Connector, 60, Gray/Gray, 100/Box
ID-30-
1260

$1099.58
1000 pcs
Carton
UnderGround™ Wire Connector, 60, Gray/Gray, 1000/Carton
ID-30-1
360

Model 64 Gray/Dark Blue Model 64 Blue/Dark Blue

$16.97
10 pcs
Pkg
UnderGround™ Wire Connector, 64, Blue/Dk. Blue, 10/pkg
ID-30-
764

$76.34
50 pcs
Box
UnderGround™ Wire Connector, 64, Gray/Dk. Blue, 50/box
ID-30-
1264

$1366.14
1000 pcs
Carton
UnderGround™ Wire Connector, 64, Gray/Dk. Blue, 1,000/Ctn
ID-30-1364

Model 66 Gray/Dark Blue Model 66 Blue/Dark Blue

$188.00
50 pcs
Box
UnderGround™ Wire Connector, 66, Gray/Dk. Blue, 50/box
ID-30-
1066
