REED

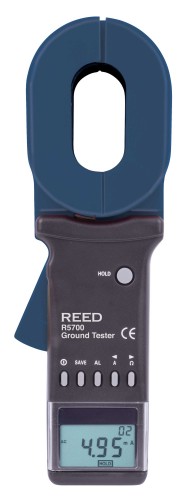

R5700 Earth Ground Resistance Tester
Enables non-contact
measurements of ground conductors without the need for auxiliary
ground spikes.
This auto ranging earth resistance clamp meter
measures ground resistance and leakage current.
The R5700 has internal memory capable
of storing up to 99 measurements, allow for a user to set alarm
thresholds and features a double molded conductor clamp for added
protection. |
|
Features:
- Auto-ranging ground resistance and leakage current measurements
- 0.001Ω resolution for low resistance measurements
- 9999-count backlit LCD display
- Internal memory stores up to 99 readings
- User adjustable alarms
- Data hold function
- Durable double molded conductor clamp
- 1.26" (32mm) jaw size for large ground rods
- Low battery indicator and auto shut off
- Cat. III 300V safety rating
-
NIST Traceable Certification
Available
- Includes: R5700 Ground Resistance Tester,
2 Resistance Calibration Loops (1Ω and 10Ω),
Batteries & Hard Carrying Case
Specifications:
Ground
Resistance:
- Ranges: 0.010 to 0.099Ω,
0.10 to 0.99Ω, 1.0 to 49.9Ω,
50.0 to 99.5Ω, 100 to 199Ω,
200 to 395Ω, 400 to 590Ω,
600 to 880Ω, 900 to 1200Ω
- Accuracy: 0.010 to 0.099Ω:
±(1%+0.01Ω), 0.10 to 0.99Ω:
±(1%+0.01Ω), 1.0 to 49.9Ω: ±(1%+0.1Ω),
50.0 to 99.5Ω: ±(1.5%+0.5Ω),
100 to 199Ω: ±(2%+1Ω), 200 to 395Ω:
±(5%+5Ω), 400 to 590Ω: ±(10%+10Ω),
600 to 880: ±(20%+20Ω), 900 to
1200Ω: ±(25%+30Ω)
- Resolution: 0.001Ω,
0.01Ω, 0.1Ω,
1Ω, 0.5Ω,
1Ω, 5Ω,
10Ω, 20Ω,
30Ω
Current:
- Ranges: 0 to 9.95A,
10 to 99mA, 100 to 300mA,
0.30 to 2.99A, 3 to 9.9A,
10 to 30A
- Accuracy: 0 to 9.95A: ±(2.5%+1mA),
10 to 99mA: ±(2.5%+5mA), 100 to
300mA: ±(2.5%10mA), 0.30 to 2.99A:
±(2.5%+0.1A), 3 to 9.9A: ±(2.5%+0.3A),
10 to 30A: ±(2.5%+0.5A)
- Resolution: 0.5mA, 0.1mA, 1mA,
0.01A, 0.1A, 0.1A
>>
