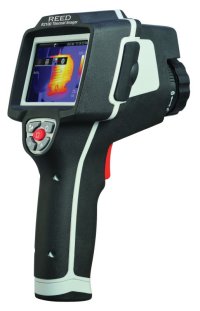

REED R2100 Thermal Imaging Camera 160 x 120
R2100 160 x 120
Thermal Imaging Camera



REED R2020 IR Thermometer / Video Data Logger - 50:1 Ratio w/ Type K Input

REED R2020 IR Thermometer / Video Data LoggerFeatures:

  • Dual lasers identify exact measuring spot where they converge
  • Adjustable emissivity from 0.10 to 1.00
  • Optical Resolution: 50:1 (Distance : Spot size)
  • Fast 150ms response time
  • Type K thermocouple input
  • Air temperature, humidity, dew point and wet bulb temperature measurement
  • Max, Min, Avg and Diff displays
  • Adjustable Hi/Lo set points with audible alarm
  • Trigger lock feature for continuous monitoring
  • 2.2" TFT colour LCD and built-in 640 x 480 pixels camera
  • Supports image (JPEG) and video (AVI) capture alerts
  • Transmit images and videos via USB interface
  • 72MB internal memory with MicroSD memory card extension
  • Datalogging capabilites with date and time
  • NIST Traceable Certification Available
  • Includes type K thermocouple probe, AC adapter, USB adapter, mini-tripod, and hard carrying case

Specifications:

  • IR Temp. Range: -50 to 2200°C  (-58 to 3992°F)
    • Accuracy: <20°C (68°F): ±3.5°C (6.3°F); 20 to 500°C (68 to 932°F): 1% ±1.0°C (1.8°F); 500 to 100°C (932 to 1832°F):  ±1.5%;  >1000°C  (1832°F):  ±2.0%
    • Resolution: <1000°:  0.1°C/°F; >1000°:  1°C/°F2.2" TFT colour LCD and built-in 640 x 480 pixels camera
    • Optical Resolution: 50:1
    • Spectral Response: 8 to 14Ám
    • Emissivity: Digital  adjustable from 0.10 to 1.00
    • Response Time: 150ms

  • Type K Temp. Range: -50 to 1370°C  (-58 to 2498°F)
    • Accuracy: ±0.5%  or ±0.5°C (0.9°F)
    • Air Temp. Range: 0 to 50°C (32 to 122°F)
    • Dew Point & Wet Bulb Temp. Range: 0 to 50°C (32 to 122°F)
    • Accuracy: <40°C: ±0.5°C (0.9°F); >40°C: ±1.0°C (1.8°F)

  • Humidity Range: 0 to 100%  RH
    • Accuracy: ±3%: 40 to 60%; ±3.5%: 20 to 40% & 60 to 80%; ±5%: 0 to 20% & 80 to 100%
  • Power Supply: Rechargeable battery Dimensions: 8.1 x 2.4 x 6.1" (205 x 62 x 155mm)
  • Weight: 14.5 oz (410g)

R2020 DataSheet (PDF)     R2020 Manual (PDF)

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States




R2020 IR Thermometer / Video Data Logger
RD-R2020
$494.10

REED R2020 IR Thermometer / Video Data Logger


R2020 IR Thermometer / Video Data Logger w/NIST

RD-R2020-NIST
$714.60

REED R2020 IR Thermometer / Video Data Logger w/NIST

*  *  *  *  *  *  *
