Reed Instruments - Test and Measurement Equipment

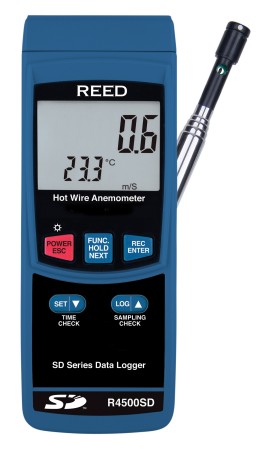

REED R4500SD
Hot Wire Thermo-Anemometer Datalogger

Real time data logger with integrated SD memory card measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

The R4500SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display.

Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software.

Optional accessories include a tripod and AC adapter for continuous long-term monitoring.


Features:

  (Replaces Model SD-4214)

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings
  • Hot wire probe for precise low air velocity measurements
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Tripod mountable for long-term monitoring
  • Low battery indicator and auto shut off
  • R4500SD Includes: Data Logging Hot Wire Thermo-Anemometer, Telescopic Hot Wire Probe, Batteries & Hard Carrying Case
  • R4500SD-KIT Includes: R4500SD items, plus 16GB Micro SD Memory Card & AC Power Adapter
  • R4500SD-KIT2 Includes: R4500SD-KIT items plus Tripod

Specifications:

  • Measuring Ranges: fpm: 40 to 4921
         m/s: 0.2 to 25
         km/h: 0.7 to 90
         mph: 0.5 to 55.9
         knots: 0.4 to 48.6
  • Air Temperature: 32 to 122F (0 to 50C)
  • Type K Temperature: -148.0 to 2372.0F (-100.0 to 1300C)
  • Type J Temperature: -148.0 to 2192.0F (-100.0 to 1200C)
  • Accuracy:
         Air Velocity: (5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot)
         Air Temperature: 0.8C (1.5F)
         Contact Temperature: ≥-58F (-50C) (0.4% + 1F (0.5C)) ≤-58F (-50C) (0.4% + 1.8F (1C))
  • Resolution: fpm: 1
    m/s, km/h, mph, knot: 0.1
  • Temperature: 0.1F/C
  • Telescope Probe Length: 11 to 37" (280 to 940mm)
  • Response Time: <1 second
  • Display: 5-digit, Dual LCD Display
  • External Memory: up to 16GB with SD card (optional, included in Kits)
  • Power Supply: 6 x AA Batteries (or AC Adapter included in Kits)
  • more >> Spec Sheet (PDF)

REED R4500SD Hot Wire Thermo-Anemometer Datalogger
R4500SD-KIT Includes: R4500SD items, plus 16GB Micro SD Memory Card & AC Power Adapter
R4500SD-KIT

R4500SD-KIT2 Includes: R4500SD-KIT items plus Tripod
R4500SD-KIT2

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States




R4500SD Hot Wire
Thermo-Anemometer Datalogger

RD-R4500SD
$404.10

REED R4500SD Hot Wire Thermo-Anemometer Datalogger


R4500SD Hot Wire
Thermo-Anemometer Datalogger
w/NIST

RD-R4500SD-NIST
$669.60

REED R4500SD Hot Wire Thermo-Anemometer Datalogger w/ NIST



R4500SD-KIT Hot Wire
Thermo-Anemometer Datalogger Kit

RD-R4500SD-KIT
$413.10

REED R4500SD-KIT Hot Wire Thermo-Anemometer Datalogger Kit


R4500SD-KIT2 Hot Wire Thermo-Anemometer Datalogger Kit

RD-R4500SD-KIT2
$481.50

REED R4500SD-KIT2 Hot Wire Thermo-Anemometer Datalogger Kit
