Reed Instruments - Test and Measurement Equipment

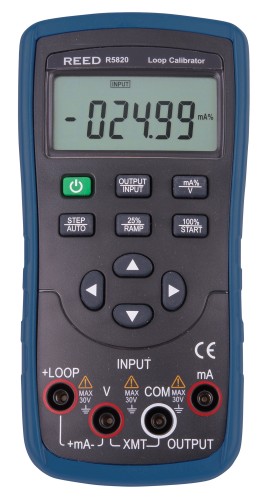

REED R5820 Loop Calibrator

This loop calibrator features mA sourcing, simulation and measurement. It has a 24V loop power supply and selectable step or ramp outputs.

 Features:  (Replaces Model VC05)

  • mA sourcing, simulation and measurement
  • Large, 5-digit LCD Display
  • 0-28 VDC measurement to check loop voltage
  • 0.02% accuracy and 0.001% of span display
  • Simulate mA and % of span display
  • Selectable step or ramp outputs
  • Internal 24V loop power supply
  • Includes: test leads, allligator clips, protective holster, and batteries
  • NIST Traceable Certification Available

Specifications:

DC Voltage Measurement:
     Range 28V
     Output Range -0.200 to 28.000V
     Resolution 1mV
     Accuracy 0.02% reading 2mV

DC Current Measurement:
     Range 20mA
     Output Range -1.000 to 22.000mA
     Resolution 0.001mA
     Accuracy 0.02% reading + 4A

Loop Current Measurement:
     Range 20mA
     Output Range 0.000 to 22.000mA
     Resolution 0.001mA
     Accuracy 0.02% reading + 4A

Current Output:
     Range 20mA
     Output Range 0.000 to 22.000mA
     Resolution 0.001mA
     Accuracy 0.05% setting + 4A

Analog Transducer Output:
     Range -20mA
     Output Range 0.000 to -22.000mA
     Resolution 0.001mA
     Accuracy 0.05% setting + 4A
     Loop Power 24V
     Accuracy 10%


REED R5820 Loop Calibrator

REED R5820 Loop Calibrator Includes: test leads, allligator clips, protective holster, and batteries

Spec Sheet (PDF)

NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States


REED R5820 Loop Calibrator

RD-R5820
$413.10

REED R5820 Loop Calibrator


REED R5820 Loop Calibrator w/ NIST

RD-R5820-NIST
$602.10

REED R5820 Loop Calibrator w/ NIST
