REED

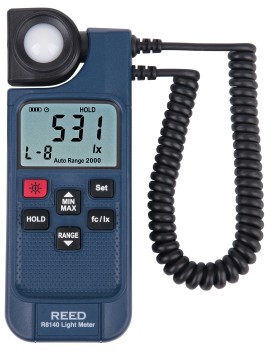

R8140 LED Light Meter
Auto-ranging LED
light meter with detachable and rotatable sensor that allows for
one-handed operation.
This LED Light Meter is capable of measuring popular
LED light sources including white, red,
green, yellow and blue LEDs up to 199,900 Lux (19,990 Fc).
The R8140 includes an auto-ranging
feature to optimize resolution and keeps track of minimum and
maximum readings. This instrument is also capable of measuring
standard incandescent light sources. |
|
Features:
- Measures ambient light levels of
white, red, yellow, green and blue LED light and visible light
in Foot-candles or Lux
- Backlit LCD display
- Detachable and rotatable light sensor
- Min/Max and data hold functions
- Cosine and color corrected measurements
- User adjustable parameter for specialized
light sources
- Low battery indicator and auto shut off
-
Includes: Light Meter, Detacjhable Sensor,
Sensor Cover,
Batteries & Hard Carrying Case
Specifications:
- Range: 0 to 199,900 lux; 0 to
19,990 Fc
- Resolution: 0.1 lux; 0.01 Fc
- Accuracy:
Incandescent Light
Source: +- (3% rdg.+ 5 dgt)
Other Visible Light Source: +- 8% rdg.
- Response Time: 500ms
- Sensor Type: Silicon photodiode
with color correction filter and cosine correction
- Light Types: White LED, Yellow
LED, Green LED, Red LED, Blue LED, Warm White Fluorescent, Cold
White Fluorescent Lamp, Incandescent
- Display: 6 Digit LCD
- Power Supply: 2 x AA Batteries
- Dimensions: 6.7 x 2.5 x 1.5"
- Weight: 7.4oz
-
Spec Sheet (PDF)
|
 |
