Reed Instruments - Test and Measurement Equipment

Replaced by:

REED R8130 Pocket Light Meter
R8130 Pocket Light Meter 400,000 lux

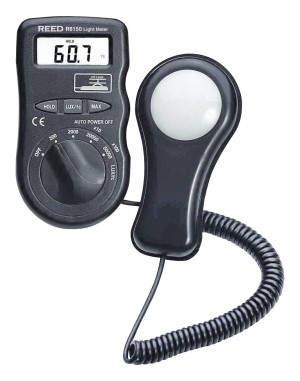

REED R8150 Pocket Light Meter

DISCONTINUED - Replaced by >> R8130

Measures up to 5,000 Fc / 50,000 Lux for basic light measuring applications.

This pocket-sized light meter is capable of taking Footcandle (Fc) and Lux measurements.

The R8150 features an LCD display, data hold/max functions, low battery indicator and auto shut-off. The tethered sensor allows for flexible operation while taking measurements.

Features:    (Formerly Model ST-1301)

  • Accurately display light levels in terms of Foot-candles or Lux (user selectable)
  • Manual Ranging
  • Max and Data hold function
  • Auto shut off
  • Over range and low battery indication
  • Compact and lightweight
  • Includes carrying case and battery
  • NIST Traceable Certification Available

Specifications:

  • Range: 0 to 50,000 lux; 0 to 5,000 Fc
  • Resolution: 0.1 lux; 0.1 Fc
  • Accuracy: ±5% of reading < 10,000 lux
  • Sampling Rate: 1.5 times/second
  • Display: 3-1/2 digit LCD
  • Power Supply: Single 12V battery
  • Dimensions: 7.4 x 2.5 x 1"
  • Weight: 5.6 oz (160g)

REED R8150 Pocket Light Meter

Spec Sheet (PDF)

DISCONTINUED - Replaced by >> R8130


NIST Traceable Certification Available

NIST Traceable Certification Available - (Optional)

Note: NIST Certification may delay shipment by 1 - 3 Days

Orders over $300 ship FREE to 48 States


REED R8150 Pocket
Light Meter

RD-R8150
DISCONTINUED



REED R8150 Pocket Light Meter


REED R8150 Pocket
Light Meter
w/ NIST

RD-R8150-NIST
DISCONTINUED



REED R8150 Pocket Light Meter w/ NIST
