REED R8500 9mm Video Inspection Camera

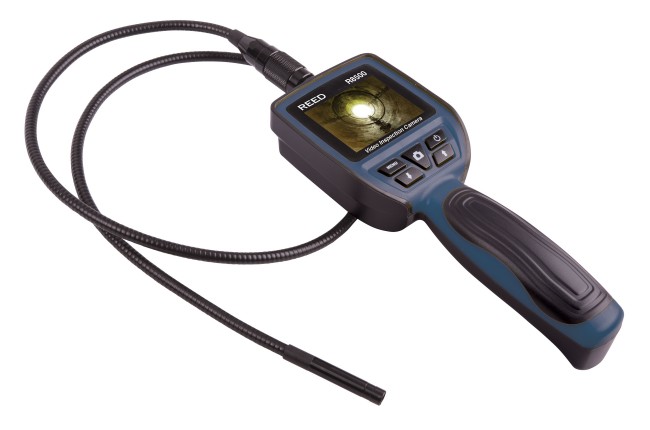

REED R8500 Video Inspection Camera

The REED R8500 is a Video Borescope that saves High Resolution Images and Video.

Features:

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5” color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off
  • Includes 9mm camera head, magnet, hook and mirror attachments, batteries, USB cable and hard carrying caseR8500 Includes 9mm camera head, magnet, hook and mirror attachments, batteries, USB cable and hard carrying case

Camera Specifications:

  • Lens Sensor Resolution 640 x 480
  • Camera Diameter 0.35” (9mm)
  • Short Distance Focus 1.18 to 2.36” (3 to 6cm)
  • Depth of Field 10mm to infinity
  • Viewing Angle 0 to 180°

General Specifications:

  • Display 2.5” Color TFT LCD
  • Display Resolution 480 x 240
  • Frames Per Second (FPS) 30
  • Standard Gooseneck Cable Length 39” (1m)
  • Rotate Display Yes (180°)
  • Playback Photo (JPEG) and Video (AVI)
  • Digital Zoom 4x
  • Memory SD Card (up to 32Gb)
  • Time and Date Stamp
  • Data Output USB / SD Card
  • LED Brightness Adjustment (4 white LEDs)
  • Low Battery Indicator
  • Power Supply 4 “AA” Batteries
  • Auto Power Off Yes (after 10 minutes)
  • On-Screen Supported Languages English, German, French, Spanish
  • Product Certifications CE, RoHS, IP67 (Camera Head)
  • Operating Temperature 14 to 122°F (-10 to 50°C)
  • Storage Temperature 14 to 113°F (-10 to 45°C)
  • Operating Humidity Range 15 to 85%
  • Dimensions 6 x 3 x 2” (152 x 76 x 51 mm)
  • Weight 12.7oz (359g)
  • Spec Sheet (PDF)


REED R8500 Video Inspection Camera

RD-R8500
$159.00

REED R8500 Video Inspection Camera

Orders over $300 ship FREE to 48 States

*  *  *  *  *  *  *
