Reed Instruments - Test and Measurement Equipment

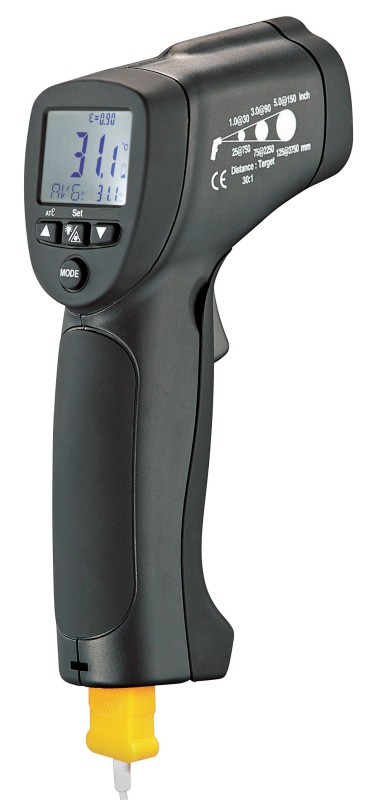

REED ST-8835 IR Thermometer - 30:1 Ratio

** Model Number Change - See >> REED R2005


REED ST-8835 30:1 Ratio Infrared ThermometerFeatures:

  • Infrared thermometer with integral type K thermocouple input
  • Built-in laser pointer identifies target area
  • 30:1 Distance to Spot Size ratio
  • Digitally adjustable emissivity from 0.10 to 1.0
  • Automatic emissivity capture
  • High and low alarms
  • Fahrenheit/Celsius switchable
  • Max, Min, Avg, Diff record
  • 20 data points of memory
  • Display backlighting
  • Auto data hold and auto shut off
  • Over range and polarity indications
  • Trigger lock
  • Includes type K thermocouple probe, battery, and carrying case

Specifications:

  • T/C Temperature Range:
    -50.0 to 1370°C (-58.0 to 2498°F)
    Resolution: 0.1°C: -50 to 1370°C; 0.1°F:
    -58 to 1999.9°F, 1°F: 2000 to 2498°F
    Accuracy:
       ±1.5% rdg. +3°C (+5°F): -50 to 1000°C (-58 to 1832°F);

    ±1.5% rdg. +2°C (3.6°F):1000 to 1370°C (1832 to 2498°F)
  • IR Temperature Range:
    -50.0 to 1050.0°C (-58.0 to 1922.0°F)
    Resolution: 0.1°C (0.1°F)
    Accuracy: ±5°C (±9°F): -50 to -20°C (-58 to -4°F);

    ±1.5% rdg. +2°C (+3.6°F): -20 to 200°C (-4 to 392°F);
       ±2.0% rdg. +2°C (+3.6°F): 200 to 538°C (392 to 1000°F);
       ±3.5% rdg. +5°C (+9°C): 538 to 1050°C (1000 to 1922°F)
    Optical Resolution: 30:1
    Emissivity: Digitally adjustable from 0.10 to 1.0
    Spectral Response: 8 to 14 μm
  • Laser: Output < 1mW, wavelength 630~670nm, Class II diode laser
  • Response Time: Less than 1 second
  • Power Supply: Single 9V battery
  • Dimensions: 100 x 56 x 230mm (39. x 2.2 x 9.0"
  • Weight: 290g (10.2 oz)
