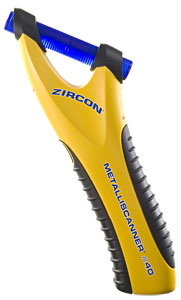

m40
Electronic
Metal Detector & Locator
MetalliScanner®
m40 quickly and easily detects metal through concrete and most
nonmetallic materials.
 Wide & pinpoint positions find plumbing, ductwork, rebar, nails, and
screws in your walls, floors and ceilings.
Find studs in lath and plaster by locating the row of nails
attaching the wood lath to the studs.
Also great for scanning reclaimed lumber for hidden metal.
Find ferrous (magnetic) metal such as rebar up to 4 in. (102mm) deep
Find non-ferrous (non-magnetic) metal such as copper pipe up to 2
in. (51mm) deep
Unique design allows for dual scanning positions
Features:
- Find ferrous (magnetic) metal such as rebar
up to 4 in. (102mm) deep
- Find non-ferrous (non-magnetic) metal such
as copper pipe up to 2 in. (51mm) deep
- Unique design allows for dual scanning
positions
- Translucent blue metal-detecting coil
- Perfect for everyone from the beginning
DIYer to highly skilled construction professionals.
- A professional-quality tool that melds
elegantly simple operation
Applications:
 Electronic
Metal Detector with Wide Scan and Pinpoint Scan:
MetalliScanner® m40 quickly and
easily detects metal in wood, drywall, paneling, tile, stucco,
plaster, concrete, and other non-metallic surfaces.
It locates ferrous (magnetic)
metal up to 4 in. (102 mm) deep and non-ferrous (non-magnetic) metal
up to 2 in. (51 mm) deep.
MetalliScanner® m40 solves
the very difficult problem of finding studs in lath and plaster
walls. It works by finding the pattern of nails that attach the wood
lath to the studs.
MetalliScanner® m40 finds
plumbing, ductwork, rebar, nails, and screws in your walls, floors
and ceilings, and is great for scanning reclaimed lumber for hidden
metal.
MetalliScanner m40 has two
scanning positions, each with a progressive LED display. As it
approaches a metal object, the red LEDs progressively light from the
bottom up. The top lighted blue coil and an audio tone indicate when
a metal target is located.
-

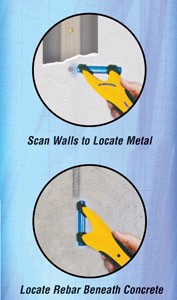

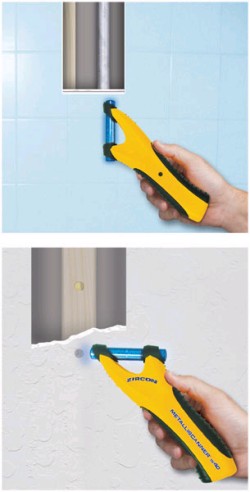

Use Pinpoint Scan to locate
small metal objects such as screws and nails
-
Use Wide Scan to detect metal
in walls or concrete.
Specifications:
| Dimensions |
7.5 in. L x 5.5 in. W x 1.1
in. D |
| Weight |
5.52 oz. (157 g) with
battery
3.9 oz. (111 g) without battery |
| Depth
(first light) |
1/2" re-bar: 4" (102 mm)
1/2" copper: 2" (51 mm) |
| Operating temperature |
40° to 120°F (4° to 49°C) |
| Storage temperature |
-20° to 150°F (-29° to
66°C) |
| Humidity |
80% RH (noncondensing) |
| Water resistance |
Splash and water resistant,
not waterproof |
|
